SCTH100N65G2-7AG - STMicroelectronics

Description: Automotive-grade silicon carbide Power MOSFET 650 V, 20 mΩ typ., 95 A in an H²PAK-7 package

Download SCTH100N65G2-7AG Model

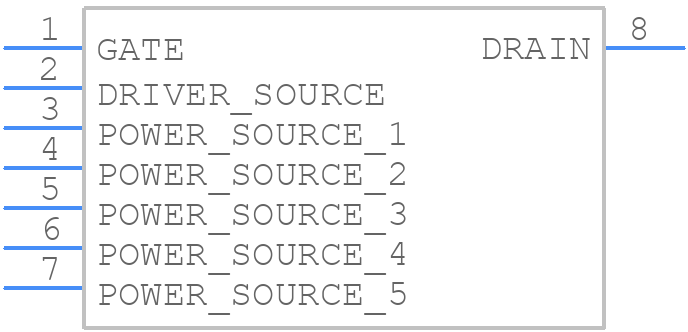

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

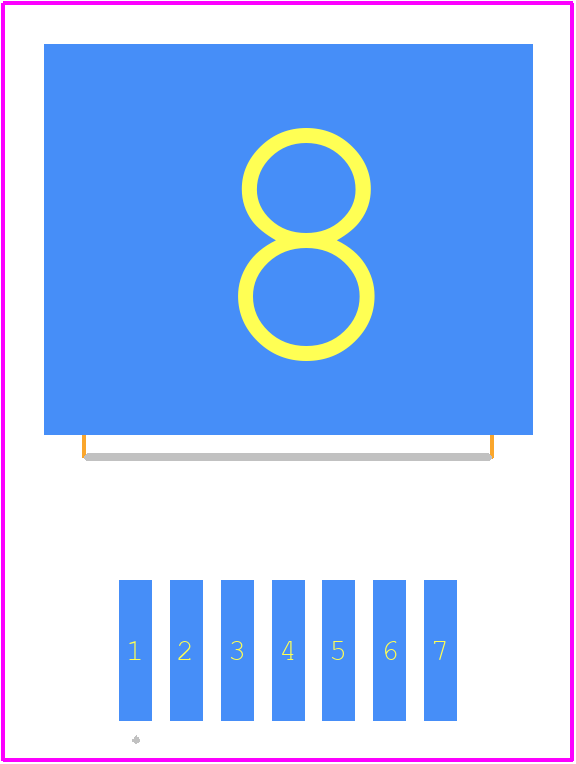

SCTH100N65G2-7AG - STMicroelectronics PCB footprint - Other - Other - H²PAK-7 _1
click to zoom

SCTH100N65G2-7AG Details

  • Manufacturer Part Number:

    SCTH100N65G2-7AG

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    32 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Additional Feature:

    BULK: 1000

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    650 V

  • Drain Current-Max (ID):

    95 A

  • Drain-source On Resistance-Max:

    0.026 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    46 pF

  • JESD-30 Code:

    R-PSSO-G7

  • Number of Elements:

    1

  • Number of Terminals:

    7

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    360 W

  • Pulsed Drain Current-Max (IDM):

    260 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON CARBIDE

SCTH100N65G2-7AG Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the SCTH100N65G2-7AG is -40°C to 150°C.
  • To ensure proper biasing, the gate-source voltage (Vgs) should be between 2V and 10V, and the drain-source voltage (Vds) should be between 0V and 650V.
  • The recommended gate resistor value for the SCTH100N65G2-7AG is between 1kΩ and 10kΩ, depending on the specific application and switching frequency.
  • To protect the device from overvoltage and overcurrent, it is recommended to use a voltage clamp or a transient voltage suppressor (TVS) diode, as well as a current sense resistor and a fuse or a current limiter.
  • The maximum allowable power dissipation for the SCTH100N65G2-7AG is 150W, assuming a junction temperature of 150°C and a case temperature of 80°C.
