SCTWA60N120G2-4 - STMicroelectronics

Description: Silicon carbide Power MOSFET 1200 V, 35 mΩ typ., 60 A in an HiP247-4 package

Download SCTWA60N120G2-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

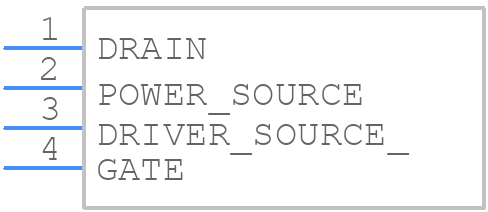

SCTWA60N120G2-4 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
SCTWA60N120G2-4 - STMicroelectronics PCB footprint - Other - Other - HiP247-4_2023-1
click to zoom
3D Models
SCTWA60N120G2-4 - STMicroelectronics - 3D model - Other - HiP247-4_2023-1
click to zoom

SCTWA60N120G2-4 Details

  • Manufacturer Part Number:

    SCTWA60N120G2-4

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    32 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • JESD-609 Code:

    e3

  • Terminal Finish:

    Matte Tin (Sn) - annealed

SCTWA60N120G2-4 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the SCTWA60N120G2-4 is -40°C to 150°C.
  • Proper cooling can be achieved by using a heat sink with a thermal resistance of less than 1°C/W, and ensuring good airflow around the device.
  • The recommended gate drive voltage for the SCTWA60N120G2-4 is between 10V and 15V.
  • Yes, the SCTWA60N120G2-4 is suitable for high-frequency switching applications up to 100 kHz, but careful consideration should be given to the device's switching losses and thermal management.
  • Overvoltage protection can be achieved using a voltage clamp or a zener diode, while overcurrent protection can be achieved using a current sense resistor and a comparator or a dedicated overcurrent protection IC.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SCTWA60N120G2-4 Overview

Use the download button to access the SCTWA60N120G2-4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SCTWA, or try a keyword search, such as Power Field-Effect Transistors

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
