SD9S-RA-PC footprint, schematic symbol and 3D model by L-COM

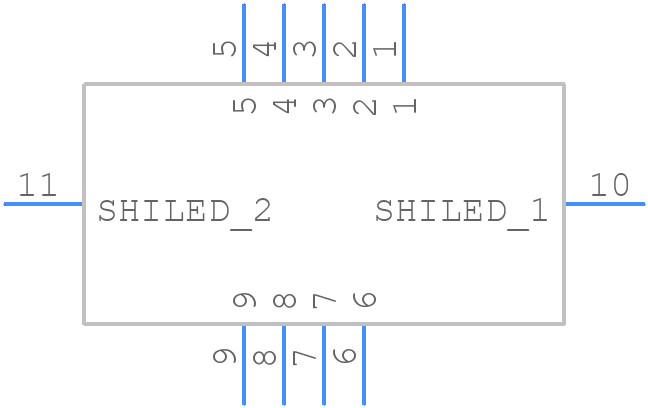

Symbol

click to zoom

PCB Footprints

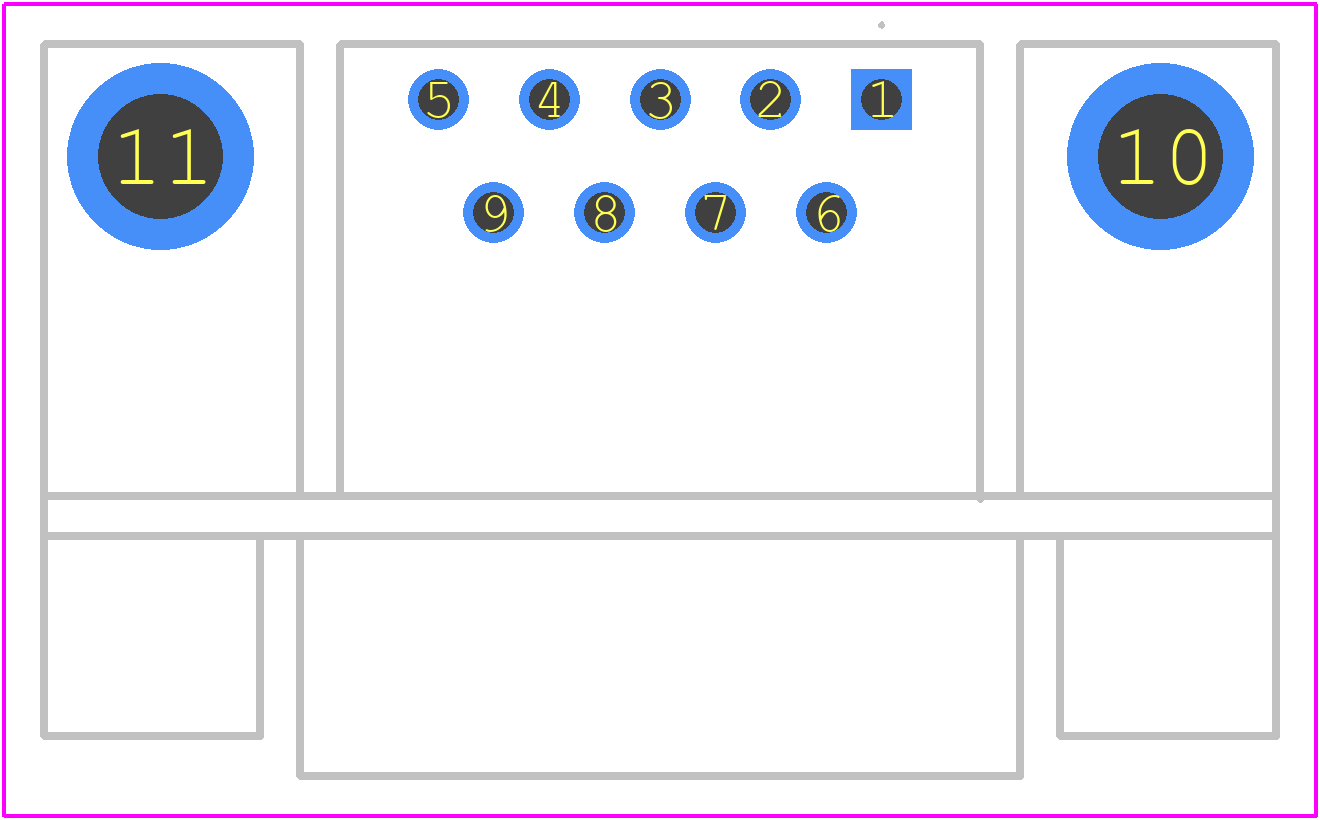

SD9S-RA-PC - L-COM PCB footprint - Other - Other - SD9S-RA-PC-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SD9S-RA-PC
Part Number SD9S-RA-PC
Manufacturer L-COM
Pin Count 11
Part Category Connector
Package Category Other
Footprint Name Other - SD9S-RA-PC-1
Released Date Jul 6, 2025
Last Modified Date Jul 10, 2025 4:50 AM UTC
Pinout / Pin List Click Here (Member Only)

SD9S-RA-PC Details

Manufacturer Part Number:
SD9S-RA-PC
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
L-com Inc
Connector Type:
D SUBMINIATURE CONNECTOR

SD9S-RA-PC Frequently Asked Questions (FAQs)

The operating temperature range for the SD9S-RA-PC is -40°C to 85°C (-40°F to 185°F).
Yes, the SD9S-RA-PC is designed for outdoor use and has an IP67 rating, making it resistant to dust and water ingress.
The maximum cable length supported by the SD9S-RA-PC is 100 meters (328 feet) for Cat5e or higher rated cables.
Yes, the SD9S-RA-PC supports IEEE 802.3af/at PoE and can deliver up to 30W of power to connected devices.
The MTBF rating for the SD9S-RA-PC is approximately 1,000,000 hours, indicating a high level of reliability and durability.

Trust Checks

Community Provided

System Verified

Community Approved

SD9S-RA-PC Overview

Use the download button to access the SD9S-RA-PC schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like SD9S-, or try a keyword search, such as D Type Connectors

Parts related to SD9S-RA-PC

Showing 0 results
