SDB-25PMMP-SL8001 - Amphenol

Description: Amphenol SDB Series, 25 Way Through Hole Waterproof PCB D-Sub Connector Plug

Download SDB-25PMMP-SL8001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

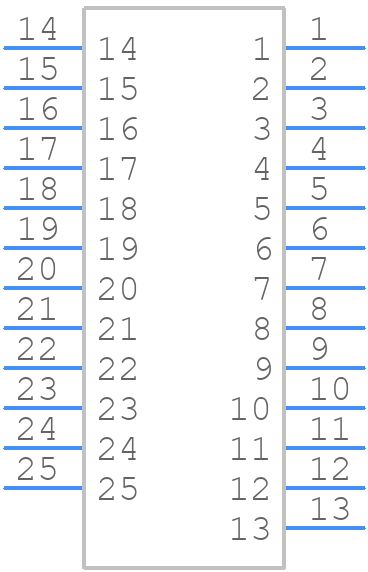

SDB-25PMMP-SL8001 - Amphenol - PCB symbol
click to zoom
PCB Footprints

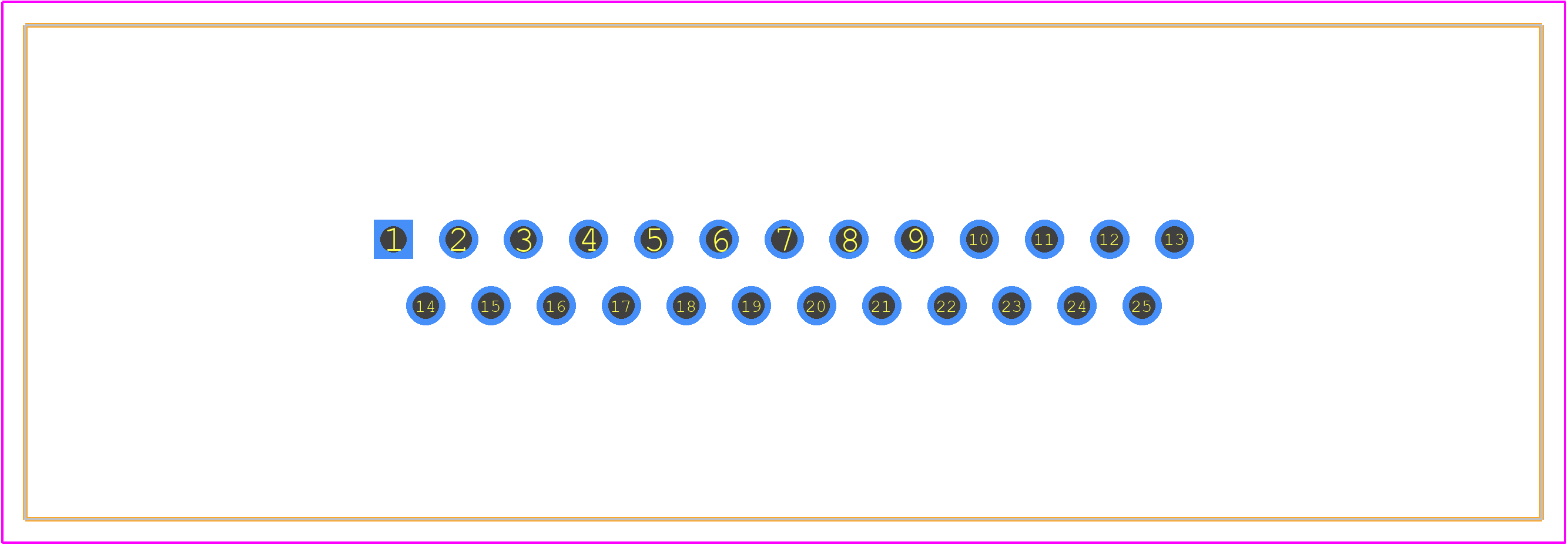

SDB-25PMMP-SL8001 - Amphenol PCB footprint - Other - Other - SDB-25PMMP-SL8001-4
click to zoom
3D Models
SDB-25PMMP-SL8001 - Amphenol - 3D model - Other - SDB-25PMMP-SL8001-4
click to zoom

SDB-25PMMP-SL8001 Details

  • Manufacturer Part Number:

    SDB-25PMMP-SL8001

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    8.5

  • Body Breadth:

    0.827 inch

  • Body Depth:

    0.309 inch

  • Body Length:

    2.539 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Gender:

    MALE

  • Contact Pattern:

    STAGGERED

  • Contact Style:

    RND PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • Mating Contact Pitch:

    0.109 inch

  • Mating Contact Row Spacing:

    0.112 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    #4-40 UNC

  • Mounting Option 2:

    SCREW

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD AND PANEL

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    WATERPROOF

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    2.84 mm

  • Rated Current (Signal):

    5 A

  • Shell Size:

    3/B

  • Terminal Length:

    0.167 inch

  • Terminal Pitch:

    2.77 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    25

SDB-25PMMP-SL8001 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw threads is 0.5-1.5 Nm (4-12 in-lbs). However, it's essential to consult the specific application requirements and follow the manufacturer's guidelines.
  • Yes, the SDB-25PMMP-SL8001 connector is designed to withstand high-vibration environments. It features a ruggedized design and a secure screw-locking mechanism to ensure reliable connections in demanding applications.
  • The SDB-25PMMP-SL8001 connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and can withstand high humidity. However, it's crucial to ensure that the connector is properly sealed and protected from environmental factors to maintain its performance and reliability.
  • The SDB-25PMMP-SL8001 connector is rated for a minimum of 500 mating cycles. However, the actual mating cycle life may vary depending on the application, usage, and environmental conditions.
  • The SDB-25PMMP-SL8001 connector is designed to be compatible with other connectors that meet the same industry standards (e.g., MIL-DTL-83513). However, it's essential to verify compatibility with specific connectors from other manufacturers to ensure reliable connections and avoid potential issues.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SDB-25PMMP-SL8001 Overview

Use the download button to access the SDB-25PMMP-SL8001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SDB-2, or try a keyword search, such as D Type Connectors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
