SDBMF-00915B0T2 - Multicomp Pro

Description: MULTICOMP PRO SDBMF-00915B0T2Memory Card Connector, SD, Push-Push, 9 Contacts, Phosphor Bronze, Gold Plated Contacts, SDBMF

Download SDBMF-00915B0T2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

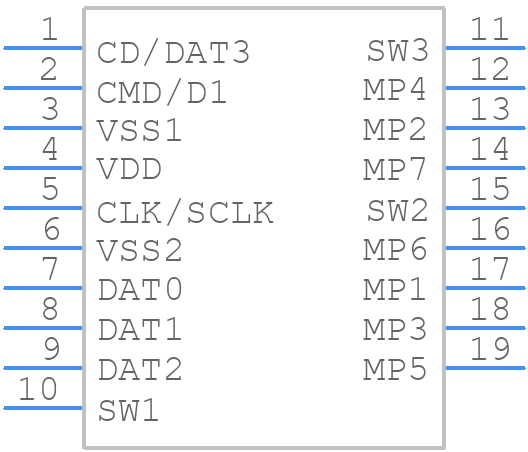

Symbol
SDBMF-00915B0T2 - Multicomp Pro - PCB symbol
click to zoom

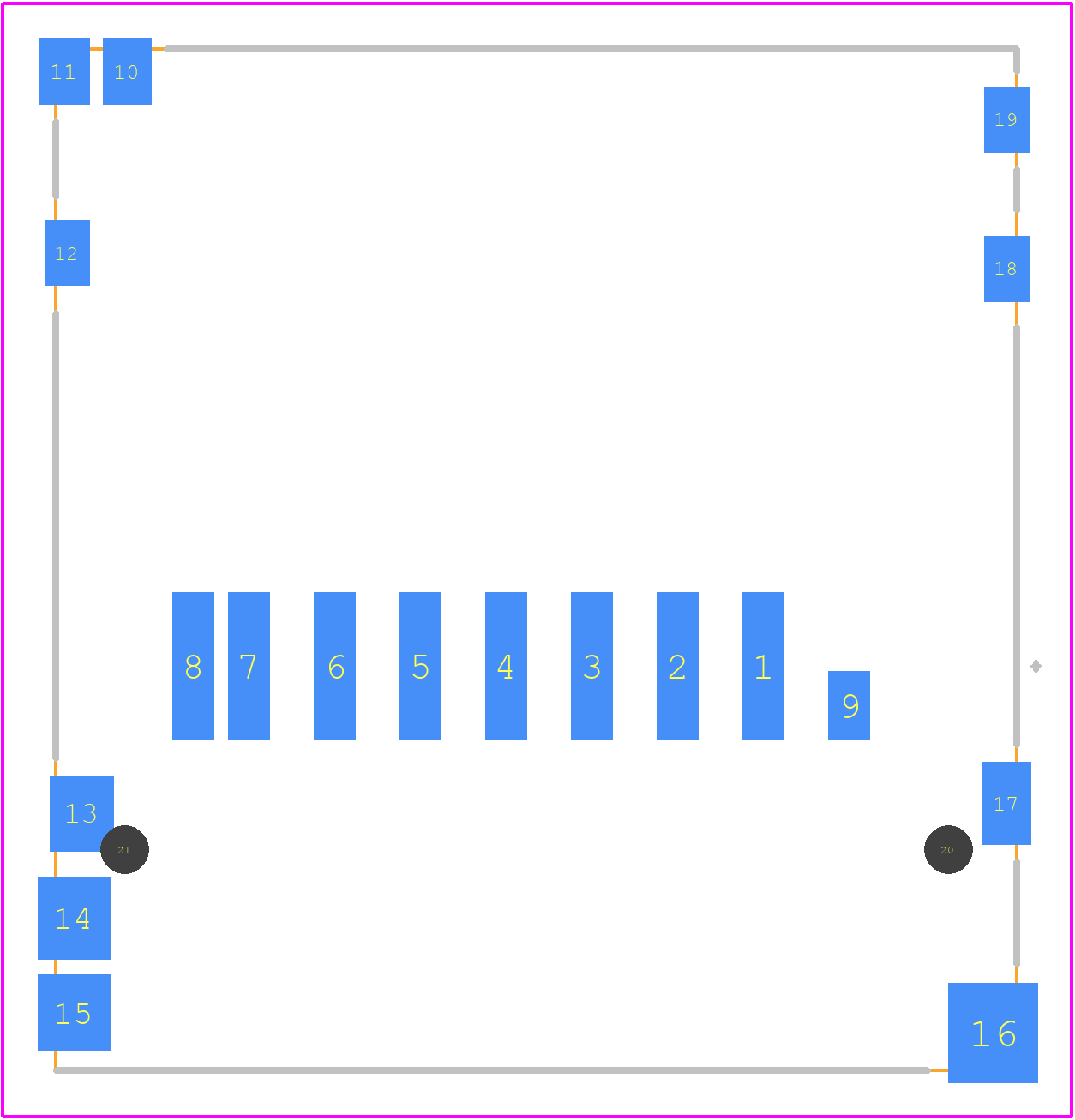

PCB Footprints
SDBMF-00915B0T2 - Multicomp Pro PCB footprint - Other - Other - SDBMF-00915B0T2-1
click to zoom
3D Models
SDBMF-00915B0T2 - Multicomp Pro - 3D model - Other - SDBMF-00915B0T2-1
click to zoom

SDBMF-00915B0T2 Details

  • Manufacturer Part Number:

    SDBMF-00915B0T2

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    SPC Multicomp

  • Body Breadth:

    0.118 inch

  • Body Depth:

    1.173 inch

  • Body Length:

    1.102 inch

  • Connector Type:

    PCB CONNECTOR

  • Contact Gender:

    FEMALE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    BELLOWED TYPE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.063 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    1.62 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    9

SDBMF-00915B0T2 Frequently Asked Questions (FAQs)

  • The recommended storage condition for SDBMF-00915B0T2 is in a dry, cool place, away from direct sunlight and moisture, with a temperature range of -20°C to 40°C and humidity below 60%.
  • Yes, SDBMF-00915B0T2 is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for mounting and installation to ensure optimal performance.
  • Yes, SDBMF-00915B0T2 is compatible with lead-free soldering processes, but it's recommended to follow the manufacturer's guidelines for soldering temperature and time to ensure optimal performance.
  • The typical lead time for SDBMF-00915B0T2 varies depending on the supplier and the quantity ordered, but it's usually around 4-6 weeks.
  • Yes, SDBMF-00915B0T2 is suitable for automotive applications, but it's recommended to check the manufacturer's specifications and certifications to ensure compliance with automotive industry standards.
