SDDB-50S(55) - Hirose

Description: 50 Position D-Sub Receptacle, Female Sockets Connector

Download SDDB-50S(55) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SDDB-50S(55) - Hirose - PCB symbol
click to zoom

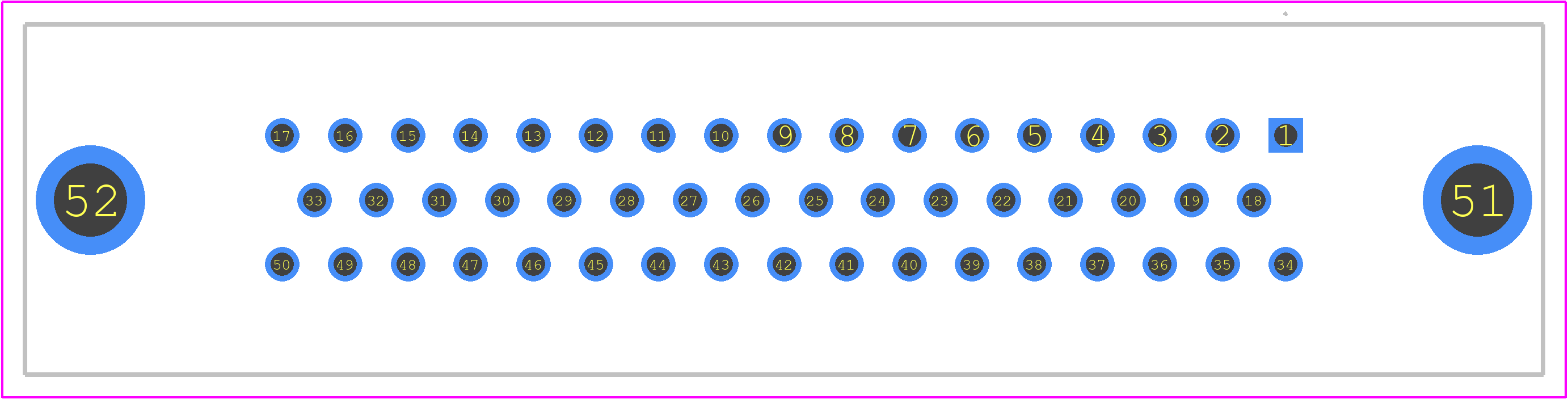

PCB Footprints
SDDB-50S(55) - Hirose PCB footprint - Other - Other - SDDB-50S(55)-2
click to zoom
3D Models
SDDB-50S(55) - Hirose - 3D model - Other - SDDB-50S(55)-2
click to zoom

SDDB-50S(55) Details

  • Manufacturer Part Number:

    SDDB-50S(55)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    AU ON NI

  • Contact Finish Termination:

    GOLD

  • Contact Gender:

    FEMALE

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Pattern:

    STAGGERED

  • Contact Resistance:

    15 mΩ

  • Contact Style:

    RND PIN-SKT

  • Dielectric Withstanding Voltage:

    1750VAC V

  • Insulation Resistance:

    5000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e4

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of PCB Rows:

    3

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    2.8448 mm

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    STEEL

  • Terminal Length:

    0.157 inch

  • Terminal Pitch:

    2.7686 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    50

SDDB-50S(55) Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 N·m to 1.5 N·m. It's essential to follow this range to ensure reliable connections and prevent damage to the terminals.
  • Yes, the SDDB-50S(55) is designed to withstand vibrations up to 10 G (10-2000 Hz) and shocks up to 100 G (11 ms). However, it's crucial to ensure proper mounting and secure connections to maintain reliability in high-vibration environments.
  • The SDDB-50S(55) can operate in temperatures ranging from -40°C to 105°C. However, it's essential to note that the operating temperature range may affect the connector's performance and lifespan.
  • Yes, the SDDB-50S(55) is designed to support high-speed signals up to 3.2 Gbps. However, it's essential to follow proper PCB design and layout guidelines to minimize signal degradation and ensure reliable transmission.
  • The SDDB-50S(55) has a moisture-resistant design, but it's not fully waterproof. It's essential to follow proper sealing and protection methods to ensure reliability in humid or wet environments.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SDDB-50S(55) Overview

Use the download button to access the SDDB-50S(55) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SDDB-, or try a keyword search, such as D Type Connectors
