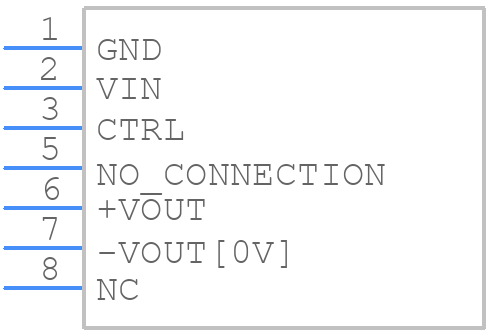

Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for SDE03S4824
- Part Number SDE03S4824
- Manufacturer Summit Electronics
- Pin Count 7
- Part Category Power Supply
- Package Category Other
- Footprint Name Other - SIP8_2026-4
- Released Date May 14, 2026
- Last Modified Date May 14, 2026 2:46 PM UTC
- Pinout / Pin List Click Here (Member Only)
SDE03S4824 Details
-
Manufacturer Part Number:
SDE03S4824
-
Manufacturer:
(Of No Interest)
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
SDE03S4824 Overview
Use the download button to access the SDE03S4824 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SDE03,
or try a keyword search, such as Fixed Inductors
