A recommended PCB layout for the SDF-40J includes a solid ground plane, short and direct traces, and a decoupling capacitor (e.g., 10nF) between the input and ground pins to reduce noise and EMI.
To ensure the SDF-40J operates within its specified temperature range, provide adequate heat dissipation, avoid overheating, and consider using a heat sink or thermal interface material if necessary.
The maximum allowable voltage drop across the SDF-40J is typically 1.5V to 2V, depending on the specific application and output current requirements. Exceeding this voltage drop may affect the device's performance and reliability.
While the SDF-40J is designed to be robust, it's essential to consider the environmental conditions and potential mechanical stress. If the device will be exposed to high vibration or shock, ensure proper mounting, and consider additional mechanical support or vibration damping measures.
To troubleshoot issues with the SDF-40J, start by verifying the input voltage, output current, and PCB layout. Check for signs of overheating, and ensure proper heat dissipation. Use an oscilloscope to monitor the output voltage and current waveforms, and consult the datasheet and application notes for guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SDF-40J Overview

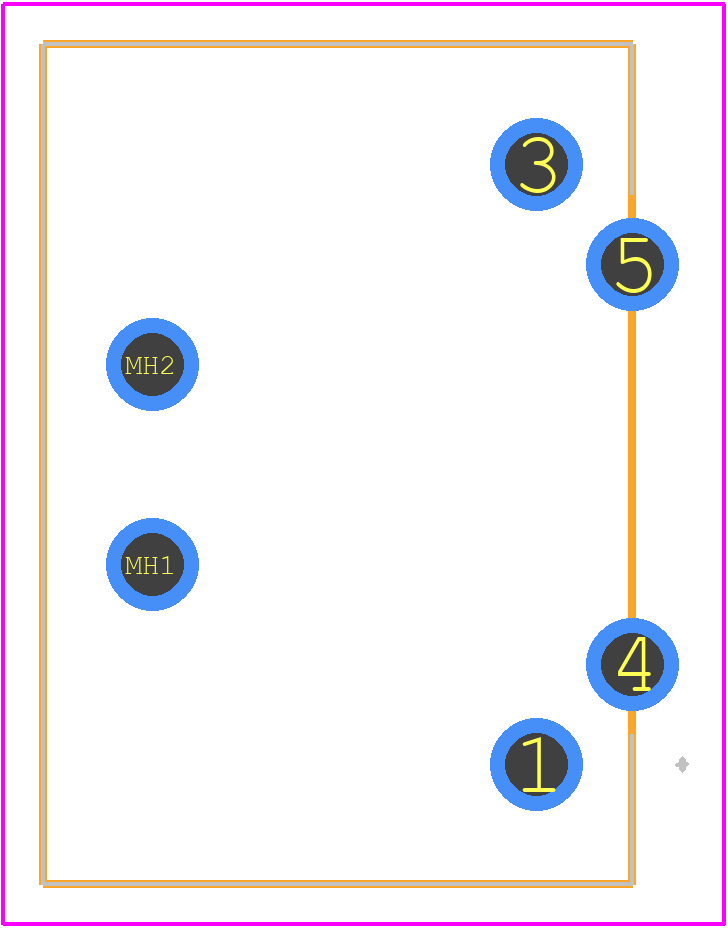

Use the download button to access the SDF-40J schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SDF-4,
or try a keyword search, such as DIN Connectors
About Same Sky
CUI Devices is an electronic components manufacturer that specializes in audio components, interconnects, motion, relay, switch and thermal management solutions. The company designs and manufacturers components for use in a wide range of industries that include aerospace, industrial, medical, and telecommunications.
CUI Devices is headquartered in Lake Oswego, Oregon.
