A good PCB layout for the SDF-80J involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the input and output traces to reduce electromagnetic interference (EMI).
To ensure proper decoupling, place a 10uF to 22uF capacitor between the input pins and the power supply, and a 100nF to 1uF capacitor between the output pins and ground. This helps to filter out noise and ripple.
The SDF-80J can operate safely within a temperature range of -40°C to 85°C. However, it's recommended to derate the output power by 1.5% per degree Celsius above 60°C to ensure reliable operation.
Yes, the SDF-80J is designed to withstand vibrations up to 10G peak acceleration. However, it's recommended to secure the device using a suitable mounting method, such as screwing or adhesive, to prevent mechanical stress.
To troubleshoot output voltage issues, check the input voltage, output load, and ambient temperature. Verify that the input voltage is within the specified range, the output load is within the recommended range, and the ambient temperature is within the operating range.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SDF-80J Overview

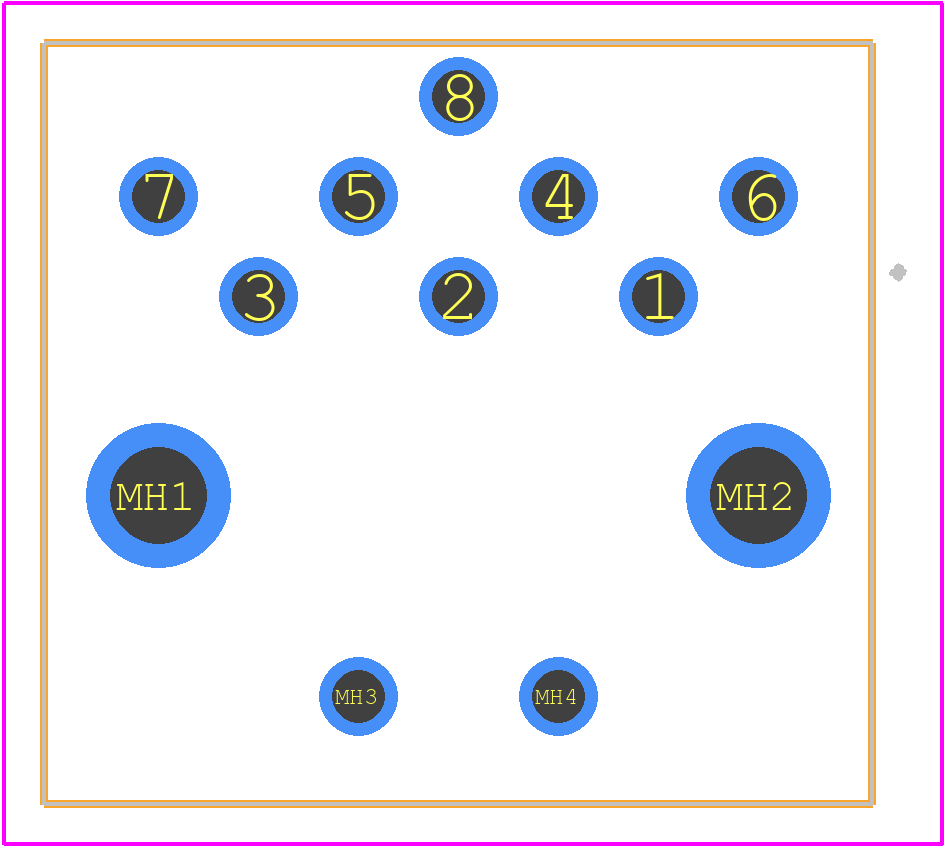

Use the download button to access the SDF-80J schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SDF-8,
or try a keyword search, such as DIN Connectors
About Same Sky
CUI Devices is an electronic components manufacturer that specializes in audio components, interconnects, motion, relay, switch and thermal management solutions. The company designs and manufacturers components for use in a wide range of industries that include aerospace, industrial, medical, and telecommunications.
CUI Devices is headquartered in Lake Oswego, Oregon.
