SDL-110-T-39 - SAMTEC

Description: 20 Position, .100" Low Profile Double Row Screw Machine Socket Strip

Download SDL-110-T-39 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SDL-110-T-39 - SAMTEC - PCB symbol
click to zoom

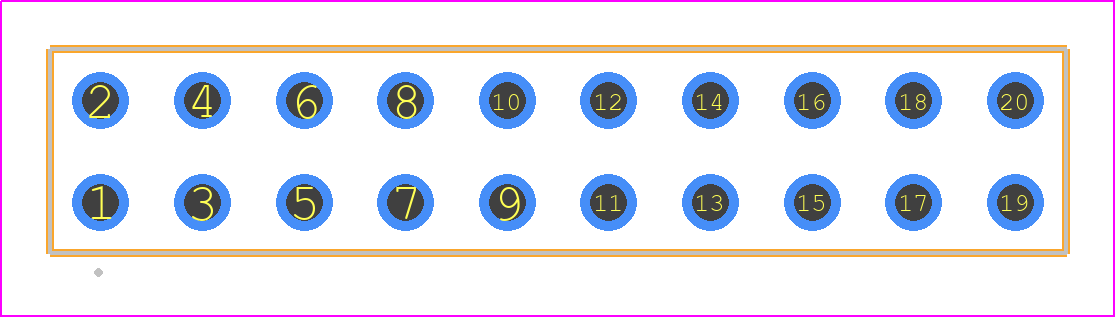

PCB Footprints
SDL-110-T-39 - SAMTEC PCB footprint - Other - Other - SDL-110-XX-YY
click to zoom
3D Models
SDL-110-T-39 - SAMTEC - 3D model - Other - SDL-110-XX-YY
click to zoom

SDL-110-T-39 Details

  • Manufacturer Part Number:

    SDL-110-T-39

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    France, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    9.1

  • Additional Feature:

    LOW PROFILE, LOW INSERTION FORCE

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD (30) OVER NICKEL

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    BERYLLIUM COPPER

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    20

SDL-110-T-39 Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the SDL-110-T-39 is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
  • Yes, the SDL-110-T-39 is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper mounting and screw torque to ensure reliable performance.
  • The maximum operating temperature for the SDL-110-T-39 is 125°C (257°F) according to the datasheet. However, it's recommended to derate the connector's performance at higher temperatures to ensure reliable operation.
  • While the datasheet recommends a PCB thickness of 1.57 mm, Samtec allows for a maximum PCB thickness of 2.36 mm. However, this may affect the connector's performance and reliability. It's recommended to consult with Samtec's technical support for custom applications.
  • The SDL-110-T-39 has a mating cycle life of 500 cycles minimum according to Samtec's datasheet. This means the connector can withstand at least 500 mating and unmating cycles without significant degradation in performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SDL-110-T-39 Overview

Use the download button to access the SDL-110-T-39 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SDL-1, or try a keyword search, such as Headers and Edge Type Connectors
