SDL-120-G-10 footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

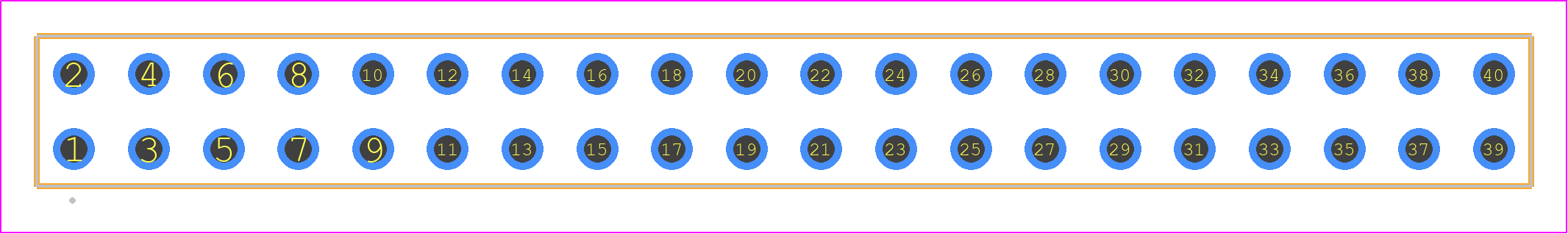

SDL-120-G-10 - SAMTEC PCB footprint - Other - Other - SDL-120-XX-YY

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SDL-120-G-10
Part Number SDL-120-G-10
Manufacturer SAMTEC
Pin Count 40
Part Category Connector
Package Category Other
Footprint Name Other - SDL-120-XX-YY
Released Date Apr 25, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SDL-120-G-10 Details

Manufacturer Part Number:
SDL-120-G-10
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
4 Weeks
Manufacturer:
Samtec Inc
YTEOL:
9.1
Body Breadth:
0.2 inch
Body Depth:
0.05 inch
Body Length:
2 inch
Connector Type:
BOARD CONNECTOR
Contact Gender:
FEMALE
Contact Pattern:
RECTANGULAR
Contact Style:
RND PIN-SKT
Filter Feature:
NO
Insulator Color:
BLACK
Insulator Material:
LIQUID CRYSTAL POLYMER
Mating Contact Pitch:
0.1 inch
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
2.54 mm
Reference Standard:
UL
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
40
UL Flammability Code:
94V-0

SDL-120-G-10 Frequently Asked Questions (FAQs)

The recommended torque for the screws on the SDL-120-G-10 connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the SDL-120-G-10 connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.
The maximum operating temperature for the SDL-120-G-10 connector is 125°C (257°F) according to Samtec's datasheet. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures.
Yes, the SDL-120-G-10 connector can accommodate PCB thicknesses up to 2.36 mm (0.093 in). However, Samtec recommends consulting their application notes for specific guidance on PCB thickness and connector orientation.
The recommended mating cycle for the SDL-120-G-10 connector is 500 cycles minimum according to Samtec's datasheet. However, the actual mating cycle may vary depending on the application and environmental conditions.
