SDL-122-G-19 footprint, schematic symbol and 3D model by SAMTEC

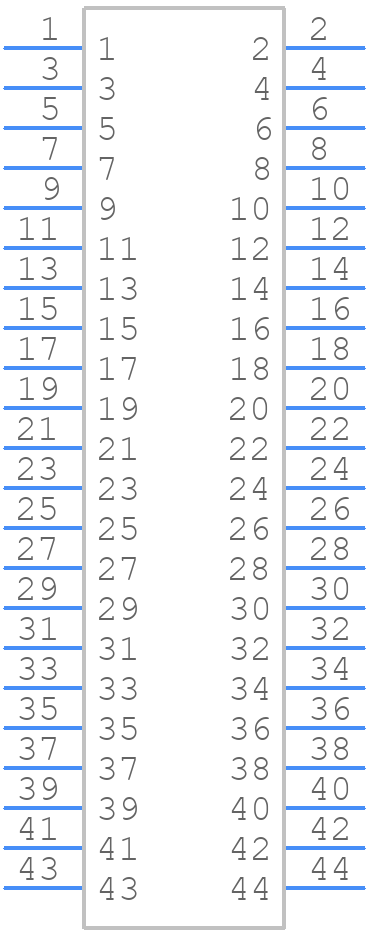

Symbol

click to zoom

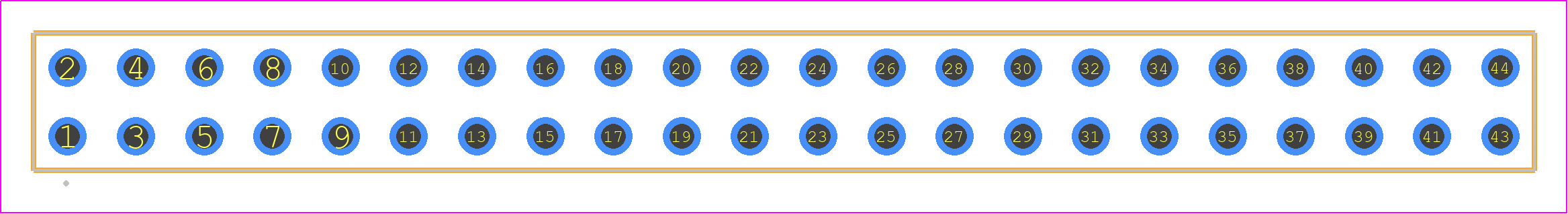

PCB Footprints

SDL-122-G-19 - SAMTEC PCB footprint - Other - Other - SDL-122-XX-YY

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SDL-122-G-19
Part Number SDL-122-G-19
Manufacturer SAMTEC
Pin Count 44
Part Category Connector
Package Category Other
Footprint Name Other - SDL-122-XX-YY
Released Date Jun 17, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SDL-122-G-19 Details

Manufacturer Part Number:
SDL-122-G-19
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
9.1
Additional Feature:
LOW PROFILE
Body/Shell Style:
SOCKET
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
GOLD (30) OVER NICKEL (50)
Contact Finish Termination:
Gold (Au) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
BERYLLIUM COPPER
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e4
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
2
Option:
GENERAL PURPOSE
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
44

SDL-122-G-19 Frequently Asked Questions (FAQs)

The recommended torque for the screws on the SDL-122-G-19 connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the SDL-122-G-19 connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.
The maximum operating temperature for the SDL-122-G-19 connector is 125°C (257°F) according to Samtec's datasheet. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures.
Yes, the SDL-122-G-19 connector can accommodate PCB thicknesses up to 2.36 mm (0.093 in). However, Samtec recommends consulting their application notes for specific guidance on PCB thickness and connector orientation.
The recommended mating cycle for the SDL-122-G-19 connector is 500-1000 cycles according to Samtec's datasheet. However, this may vary depending on the specific application and environmental conditions.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved
