A thermal pad is recommended under the package to improve heat dissipation. A minimum of 2oz copper thickness and a thermal relief pattern around the thermal pad is suggested.
Ensure proper heat sinking, avoid overheating, and follow the recommended operating conditions. The device is rated for operation up to 150°C, but derating may be necessary for high-temperature applications.
The SDT5A60SA-13 has built-in ESD protection diodes, but additional external protection may be necessary depending on the application. Follow proper PCB design and handling practices to prevent latch-up.
Yes, the SDT5A60SA-13 is suitable for high-frequency switching applications up to 100 kHz. However, ensure proper PCB layout, decoupling, and filtering to minimize electromagnetic interference (EMI).
Choose capacitors with low ESR, high ripple current rating, and suitable voltage rating. X5R or X7R ceramic capacitors are recommended. Consult the datasheet for specific capacitor selection guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SDT5A60SA-13 Overview

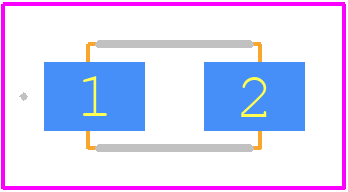

Use the download button to access the SDT5A60SA-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SDT5A,
or try a keyword search, such as Rectifier Diodes
