3 X 4 MM, 0.90 MM HEIGHT, HALOGEN FREE AND ROHS COMPLIANT, QFN-24
Pin Count:
24
HTS Code:
8542.39.00.01
Manufacturer:
Skyworks Solutions Inc
YTEOL:
6
JESD-30 Code:
R-XQCC-N24
Length:
4 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
24
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
UNSPECIFIED
Package Code:
HVQCCN
Package Equivalence Code:
LCC24,.12X.16,16
Package Shape:
RECTANGULAR
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
0.9 mm
Supply Voltage-Nom:
3 V
Surface Mount:
YES
Telecom IC Type:
TELECOM CIRCUIT
Temperature Grade:
INDUSTRIAL
Terminal Form:
NO LEAD
Terminal Pitch:
0.4 mm
Terminal Position:
QUAD
Width:
3 mm
SE2431L-R Frequently Asked Questions (FAQs)
The recommended PCB layout and land pattern for the SE2431L-R can be found in the Skyworks Solutions Inc. application note AN40443. It provides detailed guidelines for PCB design, component placement, and thermal management to ensure optimal performance and reliability.
Optimizing the input and output matching networks for the SE2431L-R requires careful consideration of the device's impedance characteristics and the specific application requirements. Skyworks Solutions Inc. recommends using simulation tools such as Advanced Design System (ADS) or Microwave Office to model and optimize the matching networks. Additionally, the application note AN40443 provides guidance on matching network design.
The SE2431L-R has a maximum junction temperature (Tj) of 150°C. To ensure reliable operation, it's essential to implement proper thermal management techniques, such as using thermal vias, thermal pads, and heat sinks. The application note AN40443 provides detailed guidance on thermal management and recommends using thermal simulation tools to model and optimize the thermal performance of the PCB design.
The SE2431L-R is a sensitive device and requires proper ESD protection and handling precautions to prevent damage. Skyworks Solutions Inc. recommends following standard ESD handling procedures, such as using wrist straps, anti-static bags, and ESD-safe workstations. Additionally, the device should be handled by the package, not the pins, to prevent mechanical stress and damage.
The SE2431L-R is a lead-free device and requires soldering techniques compatible with lead-free soldering. Skyworks Solutions Inc. recommends following the IPC-A-610 standard for electronic assembly and using a soldering profile with a peak temperature of 240°C to 250°C. Additionally, the application note AN40443 provides guidance on soldering and assembly techniques.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SE2431L-R Overview

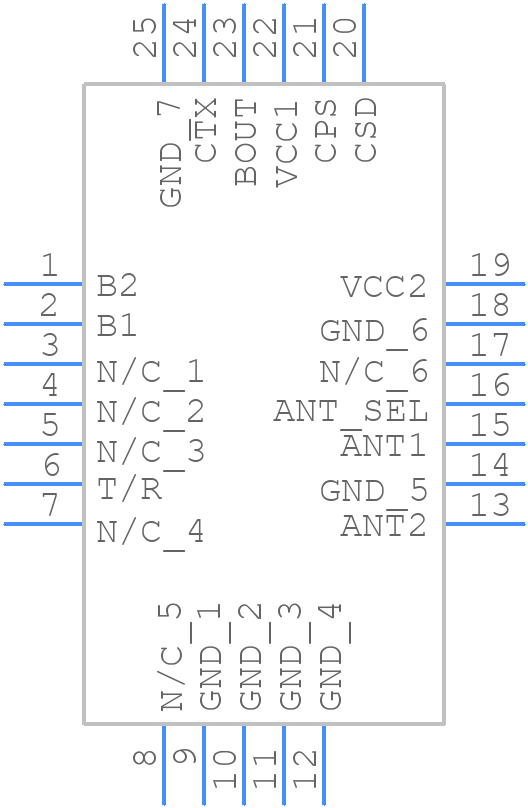

Use the download button to access the SE2431L-R schematic symbol, PCB footprint, and 3D model.
