The recommended PCB layout and land pattern for the SE2433T-R can be found in the Skyworks Solutions Inc. application note AN40443, which provides detailed guidelines for optimal performance and thermal management.
To ensure proper biasing, follow the recommended voltage and current settings outlined in the datasheet. Additionally, ensure that the device is operated within the recommended operating temperature range and that the input and output impedances are properly matched.
The SE2433T-R has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB to ensure efficient heat dissipation. A thermal interface material (TIM) can be used to improve thermal conductivity. Follow the recommended thermal management guidelines in the datasheet and application notes.
To troubleshoot common issues, start by verifying the device is properly biased and that the input and output impedances are matched. Check for any signs of overheating, and ensure that the device is operated within the recommended temperature range. Consult the datasheet and application notes for troubleshooting guidelines and common pitfalls to avoid.
Yes, the SE2433T-R is a sensitive device and requires proper ESD protection during handling and assembly. Follow standard ESD protection procedures, such as using an ESD wrist strap or mat, and ensure that the device is stored in an anti-static bag or container.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SE2433T-R Overview

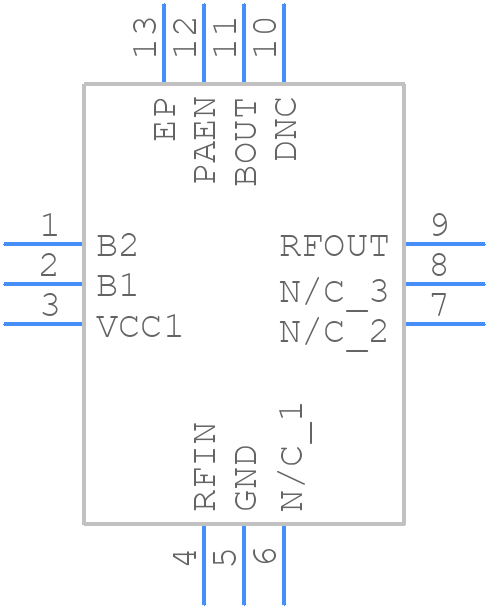

Use the download button to access the SE2433T-R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SE243,
or try a keyword search, such as RF/Microwave Amplifiers
