The recommended PCB layout and land pattern for the SE2574BL-R can be found in the Skyworks Solutions Inc. application note AN302A, which provides detailed guidelines for optimal performance and thermal management.
The SE2574BL-R requires a bias voltage of 3.3V to 5V, and a bias current of 10mA to 50mA. Ensure that the bias circuitry is designed to provide a stable voltage and current to the device, and that the bias pins are properly decoupled to minimize noise and oscillations.
The SE2574BL-R is designed to handle a maximum input power of +20 dBm. Exceeding this power level may result in device damage or degradation. Ensure that the input power is properly attenuated or amplified to prevent damage to the device.
Common issues with the SE2574BL-R can be troubleshooted by checking the bias voltage and current, ensuring proper PCB layout and decoupling, and verifying that the input power is within the recommended range. Additionally, checking for signs of device damage or degradation, such as excessive current draw or overheating, can help identify the root cause of the issue.
Yes, the SE2574BL-R is a high-power device that requires proper thermal management to prevent overheating. Ensure that the device is mounted on a heat sink or thermal pad, and that the PCB is designed to dissipate heat effectively. Operating the device within the recommended temperature range (-40°C to +85°C) is also crucial for optimal performance and reliability.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SE2574BL-R Overview

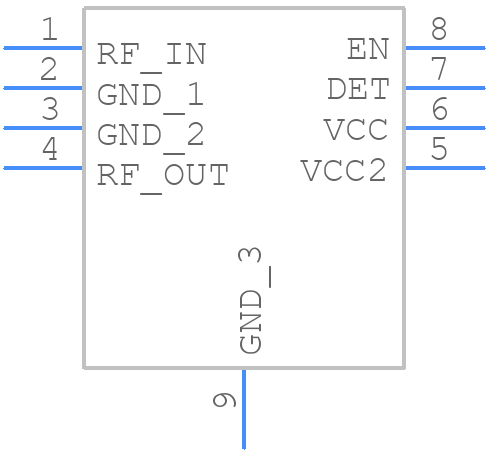

Use the download button to access the SE2574BL-R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SE257,
or try a keyword search, such as RF/Microwave Amplifiers
