SE95DP,118 - NXP

Description: NXP SE95DP,118, Temperature Sensor -55 → +125 °C ±1% Serial-I2C, 8-Pin TSSOP

Download SE95DP,118 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

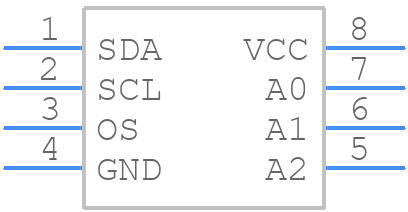

SE95DP,118 - NXP - PCB symbol
click to zoom
PCB Footprints
SE95DP,118 - NXP PCB footprint - Small Outline Packages - Small Outline Packages - SE95DP,118
click to zoom
3D Models
SE95DP,118 - NXP - 3D model - Small Outline Packages - SE95DP,118
click to zoom

SE95DP,118 Details

  • Manufacturer Part Number:

    SE95DP,118

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    3 MM, PLASTIC, SOT505-1, TSSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOT505-1

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Accuracy-Max (Cel):

    2 Cel

  • Additional Feature:

    THERMAL WATCHDOG

  • Body Breadth:

    3 mm

  • Body Height:

    1.1 mm

  • Body Length or Diameter:

    3 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    13

  • Number of Terminals:

    8

  • Operating Current-Max:

    1 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Termination Type:

    SOLDER
