SEAF8-20-05.0-S-04-3 - SAMTEC

Description: 80 Position Connector High Density Array, Female Surface Mount Gold

Download SEAF8-20-05.0-S-04-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SEAF8-20-05.0-S-04-3 - SAMTEC - PCB symbol
click to zoom

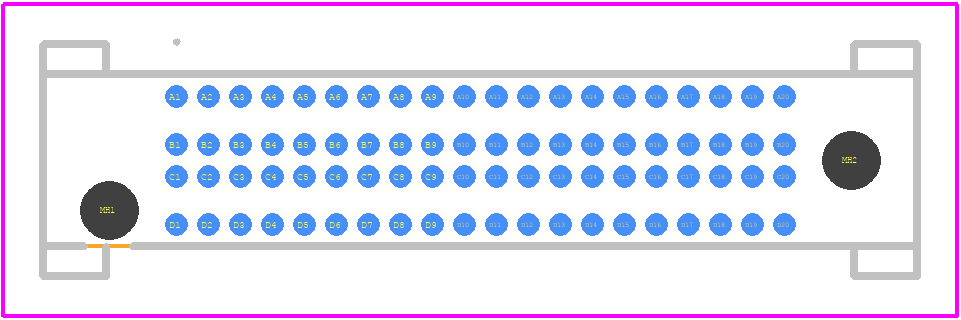

PCB Footprints
SEAF8-20-05.0-S-04-3 - SAMTEC PCB footprint - Other - Other - SEAF8-20-05.0-S-04-3-1
click to zoom
3D Models
SEAF8-20-05.0-S-04-3 - SAMTEC - 3D model - Other - SEAF8-20-05.0-S-04-3-1
click to zoom

SEAF8-20-05.0-S-04-3 Details

  • Manufacturer Part Number:

    SEAF8-20-05.0-S-04-3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    9

  • Additional Feature:

    SEARAY

  • Board Mounting Option:

    PEG

  • Body Breadth:

    0.228 inch

  • Body Depth:

    0.18 inch

  • Body Length:

    0.86 inch

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Gender:

    FEMALE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    15 mΩ

  • Contact Style:

    CENTRONIC

  • Dielectric Withstanding Voltage:

    660VAC V

  • Durability:

    1000 Cycles

  • Filter Feature:

    NO

  • Insulation Resistance:

    15000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • Mating Contact Pitch:

    0.031 inch

  • Mating Contact Row Spacing:

    0.02 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    4

  • Number of Rows Loaded:

    4

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    0.8 mm

  • Packing Method:

    TR

  • Plating Thickness:

    30u inch

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    1.3 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.8 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    80

SEAF8-20-05.0-S-04-3 Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the SEAF8-20-05.0-S-04-3 connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's general guidelines for screw-down terminals.
  • Yes, the SEAF8-20-05.0-S-04-3 connector is designed to withstand vibration and can be used in high-vibration environments. However, it's recommended to follow Samtec's guidelines for vibration testing and to consult with a Samtec representative for specific application requirements.
  • The maximum operating temperature for the SEAF8-20-05.0-S-04-3 connector is 125°C (257°F) according to Samtec's datasheet. However, it's recommended to consult with a Samtec representative for specific temperature requirements and to ensure the connector meets the application's thermal demands.
  • The SEAF8-20-05.0-S-04-3 connector is not designed for use in wet or humid environments. It's recommended to use a connector with a higher IP rating or to apply a conformal coating to protect the connector from moisture. Consult with a Samtec representative for specific environmental requirements.
  • The mating cycle life of the SEAF8-20-05.0-S-04-3 connector is 500 cycles minimum according to Samtec's datasheet. However, this may vary depending on the application and usage. Consult with a Samtec representative for specific mating cycle life requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SEAF8-20-05.0-S-04-3 Overview

Use the download button to access the SEAF8-20-05.0-S-04-3 schematic symbol, PCB footprint, and 3D model.
