SEC1210-CN-02NC-TR - Microchip

Description: I/O Controller Interface IC Smart Card Bridge to Full Speed USB

Download SEC1210-CN-02NC-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

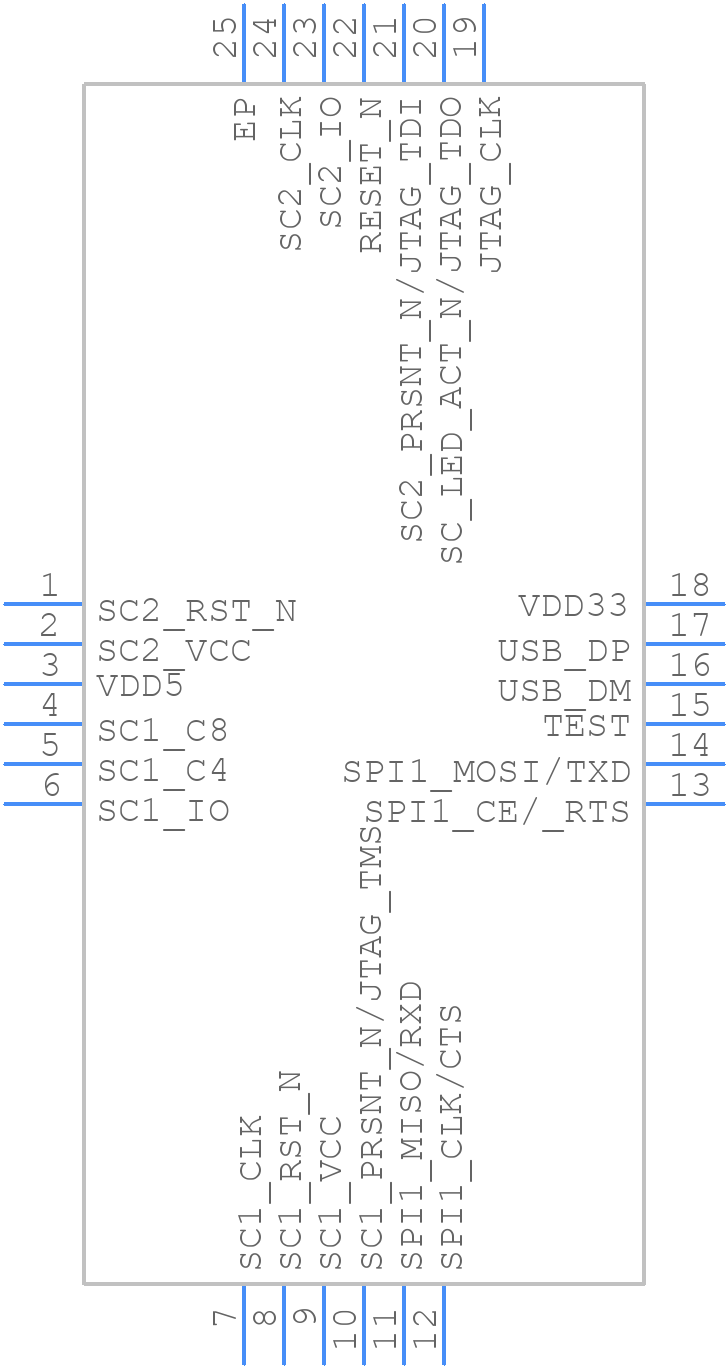

SEC1210-CN-02NC-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
SEC1210-CN-02NC-TR - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-VFQFN Exposed Pad
click to zoom
3D Models
SEC1210-CN-02NC-TR - Microchip - 3D model - Quad Flat No-Lead - 24-VFQFN Exposed Pad
click to zoom

SEC1210-CN-02NC-TR Details

  • Manufacturer Part Number:

    SEC1210-CN-02NC-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    QFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    QFN-24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Terminal Finish:

    Matte Tin (Sn)

SEC1210-CN-02NC-TR Frequently Asked Questions (FAQs)

  • Microchip recommends a 2-layer or 4-layer PCB with a solid ground plane and thermal vias to dissipate heat efficiently. A minimum of 2 oz copper thickness is recommended.
  • Use a reliable communication protocol such as I2C or SPI, and ensure proper signal termination and noise filtering. Also, follow the recommended PCB layout and routing guidelines to minimize signal degradation.
  • The SEC1210 is rated for operation from -40°C to +125°C. However, it's recommended to operate within the -20°C to +85°C range for optimal performance and reliability.
  • Yes, the SEC1210 is designed to withstand moderate vibration levels. However, it's recommended to follow proper mounting and soldering techniques to ensure reliable operation in high-vibration environments.
  • Use a logic analyzer or oscilloscope to debug communication issues. Check the power supply and decoupling capacitors for proper operation. Consult the datasheet and application notes for troubleshooting guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SEC1210-CN-02NC-TR Overview

Use the download button to access the SEC1210-CN-02NC-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SEC12, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
