SEI-110-02-G-S-AB - SAMTEC

Description: Board to Board & Mezzanine Connectors 1.00 mm Single Row One-Piece Interface

Download SEI-110-02-G-S-AB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

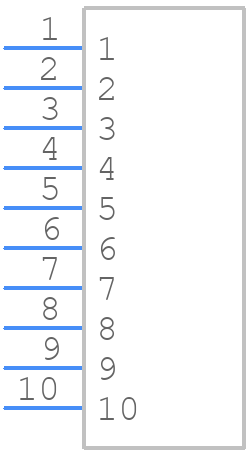

SEI-110-02-G-S-AB - SAMTEC - PCB symbol
click to zoom
PCB Footprints

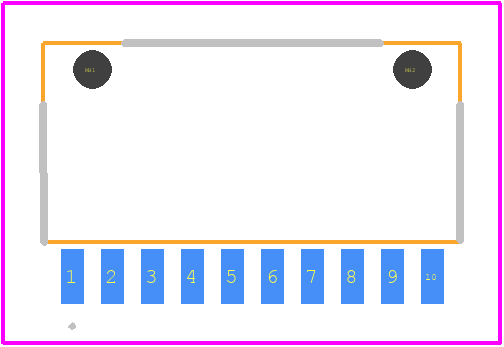

SEI-110-02-G-S-AB - SAMTEC PCB footprint - Other - Other - SEI-110-02-G-S-AB-1
click to zoom
3D Models
SEI-110-02-G-S-AB - SAMTEC - 3D model - Other - SEI-110-02-G-S-AB-1
click to zoom

SEI-110-02-G-S-AB Details

  • Manufacturer Part Number:

    SEI-110-02-G-S-AB

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    6 Weeks, 6 Days

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    4

  • Connector Type:

    CARD EDGE CONNECTOR

  • Contact Finish Mating:

    GOLD (10) OVER NICKEL (50)

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    PHOSPHOR BRONZE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    1 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    10

SEI-110-02-G-S-AB Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5-1.5 in-lbs (0.056-0.169 Nm) for the screws on the SEI-110-02-G-S-AB connector.
  • Yes, the SEI-110-02-G-S-AB connector is designed to withstand high-vibration environments and is suitable for applications where vibration is a concern.
  • Yes, the SEI-110-02-G-S-AB connector is designed to operate in harsh environments, including high temperatures up to 125°C and high humidity. However, it's essential to follow the recommended storage and operating conditions outlined in the datasheet.
  • The SEI-110-02-G-S-AB connector has a mating cycle life of 500 cycles minimum, making it suitable for applications where frequent mating and unmating are required.
  • Yes, the SEI-110-02-G-S-AB connector is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in European Union countries.
