Part Image

SEPS-4-222+ - Mini-Circuits

Description: RF Power Divider 800 MHz ~ 2.2 GHz Isolation (Min) 17dB, 6° Imbalance (Max) 22-SMD, No Lead

Download SEPS-4-222+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

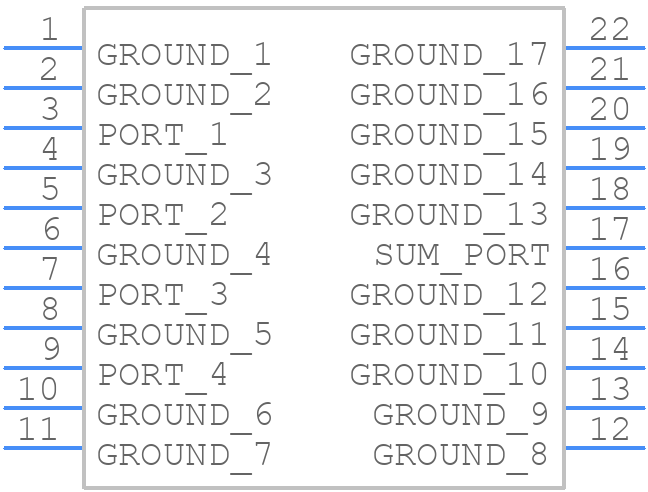

Symbol
SEPS-4-222+ - Mini-Circuits - PCB symbol
click to zoom

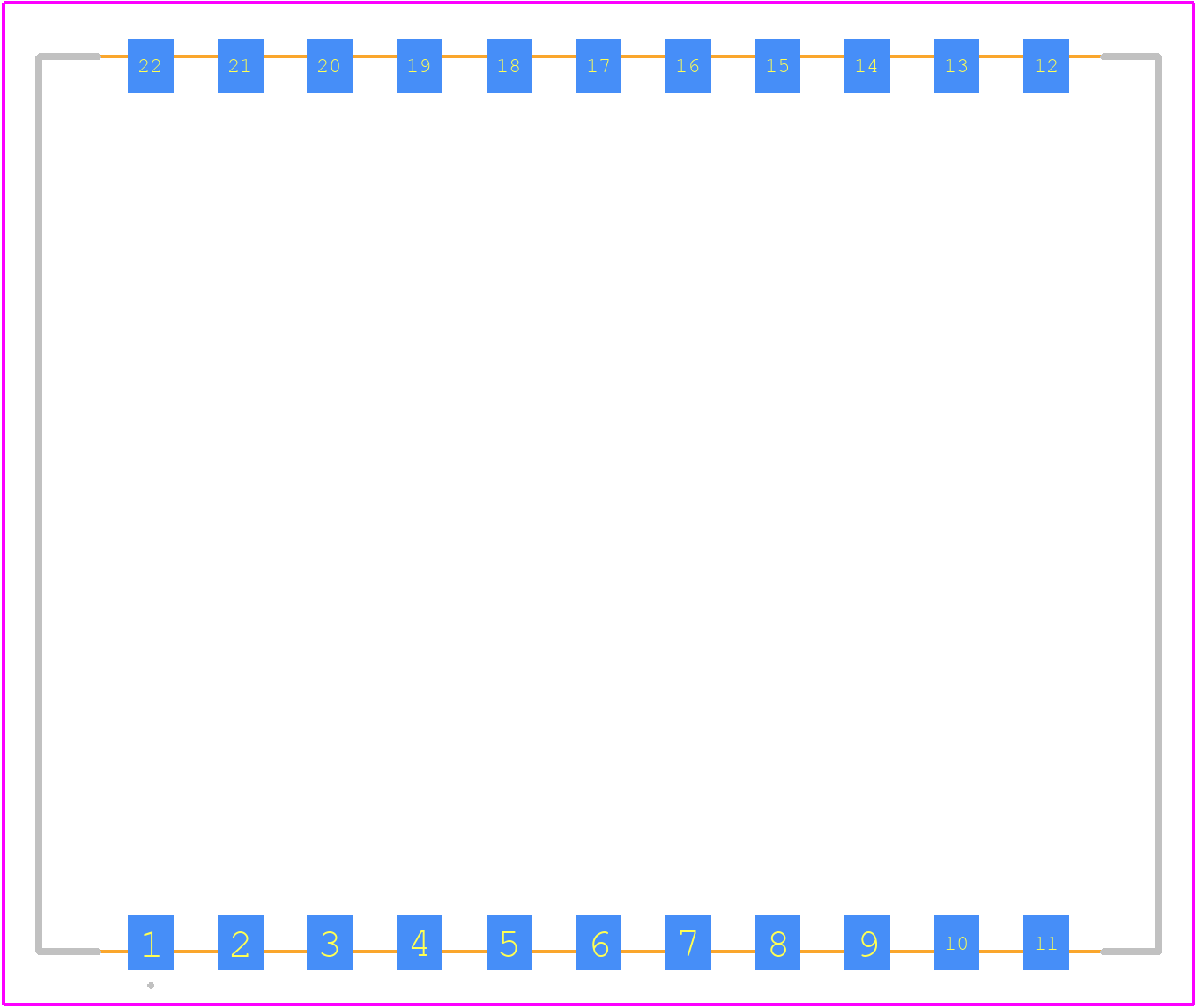

PCB Footprints
SEPS-4-222+ - Mini-Circuits PCB footprint - Other - Other - JF1258_2024-1
click to zoom
3D Models
SEPS-4-222+ - Mini-Circuits - 3D model - Other - JF1258_2024-1
click to zoom

SEPS-4-222+ Details

  • Manufacturer Part Number:

    SEPS-4-222+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, CASE JF1258, 22 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.05

  • Additional Feature:

    ISOLATION-MIN (DB):17

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    36.99 dBm

  • Insertion Loss-Max:

    1.4 dB

  • JESD-609 Code:

    e2

  • Operating Frequency-Max:

    2200 MHz

  • Operating Frequency-Min:

    800 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    COMBINER

  • Terminal Finish:

    TIN COPPER OVER NICKEL

  • VSWR-Max:

    1.88

SEPS-4-222+ Frequently Asked Questions (FAQs)

  • The maximum power handling of SEPS-4-222+ is 20 W, but it's recommended to derate the power handling based on the operating frequency and temperature to ensure reliable operation.
  • Yes, SEPS-4-222+ can be used as both a splitter and a combiner. As a splitter, it can divide an input signal into four equal outputs, and as a combiner, it can combine four input signals into a single output.
  • The phase balance of SEPS-4-222+ is typically within ±10°, which means that the phase difference between the output ports is within 10 degrees of each other.
  • Yes, SEPS-4-222+ is designed to operate up to 2.2 GHz, making it suitable for high-frequency applications such as wireless communication systems, radar systems, and satellite communication systems.
  • The operating temperature range of SEPS-4-222+ is -40°C to +85°C, making it suitable for use in a wide range of environmental conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SEPS-4-222+ Overview

Use the download button to access the SEPS-4-222+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SEPS-, or try a keyword search, such as RF/Microwave Splitter/Combiners

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
