- Part Number SER2211-473MED
- Manufacturer COILCRAFT
- Pin Count 3
- Part Category Inductor
- Package Category Other
- Footprint Name Other - SER2211-473MED-2
- Released Date Mar 18, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
SER2211-473MED Details
-
Manufacturer Part Number:
SER2211-473MED
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
CHIP
-
ECCN Code:
EAR99
-
HTS Code:
8504.50.80.00
-
Manufacturer:
Coilcraft Inc
-
YTEOL:
6.2
-
Case/Size Code:
8976
-
Construction:
Rectangular
-
Core Material:
FERRITE
SER2211-473MED Frequently Asked Questions (FAQs)
-
The recommended land pattern for the SER2211-473MED is a rectangular pad with a size of 2.5 mm x 1.5 mm, with a non-solder mask defined (NSMD) pad shape. This ensures proper soldering and minimizes the risk of solder bridging.
-
The SER2211-473MED has a maximum operating temperature of 125°C. To ensure reliable operation, it's essential to consider thermal management strategies such as heat sinking, airflow, and thermal interface materials to keep the inductor within its specified temperature range.
-
The SRF of the SER2211-473MED is not explicitly stated in the datasheet. However, based on the inductor's design and materials, the SRF is typically in the range of 100-200 MHz. This information can be obtained by contacting Coilcraft's technical support or through application notes.
-
While the SER2211-473MED is a high-quality inductor, it may not meet the specific requirements for high-reliability or aerospace applications. Engineers should consult with Coilcraft's technical support to determine if the inductor meets the necessary qualifications and certifications for their specific application.
-
To minimize magnetic interference and ensure proper shielding, it's recommended to keep the SER2211-473MED at least 2-3 mm away from other components and to use a ground plane or shielded enclosure to contain the magnetic field.
Trust Checks
Expert Contribution
System Verified
Community Approved
SER2211-473MED Overview

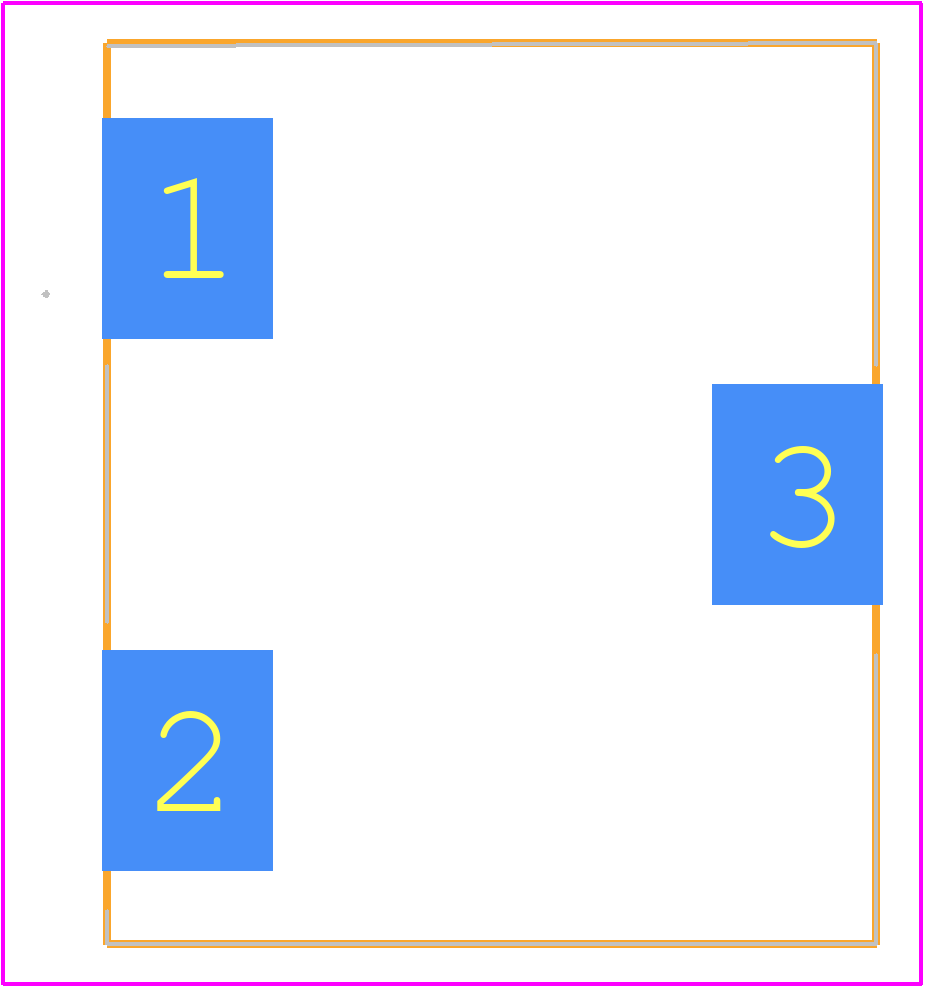

Use the download button to access the SER2211-473MED schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SER22,
or try a keyword search, such as Fixed Inductors
About COILCRAFT
Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
