SER2915H-223KL - COILCRAFT

Description: COILCRAFT - SER2915H-223KL - Power Inductor (SMD), 22 µH, 30 A, Shielded, 7 A, SER2900 Series, 27.9mm x 19.8mm x 15.36mm

Download SER2915H-223KL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SER2915H-223KL - COILCRAFT - PCB symbol
click to zoom
PCB Footprints

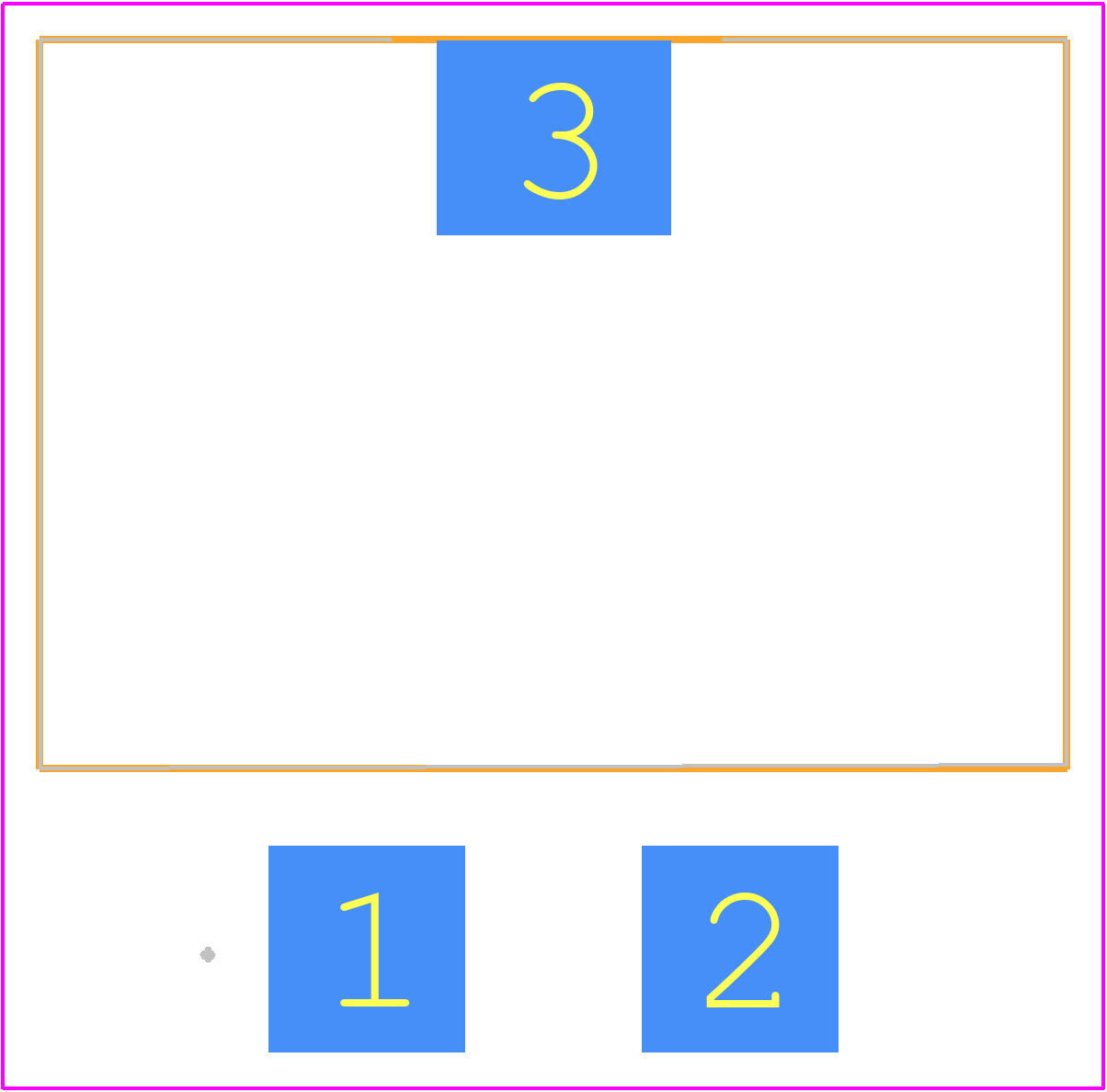

SER2915H-223KL - COILCRAFT PCB footprint - Other - Other - SER2915H-223KL-1
click to zoom
3D Models
SER2915H-223KL - COILCRAFT - 3D model - Other - SER2915H-223KL-1
click to zoom

SER2915H-223KL Details

  • Manufacturer Part Number:

    SER2915H-223KL

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6.6

  • Core Material:

    FERRITE

  • DC Resistance:

    0.00205 Ω

  • Inductance-Nom (L):

    22 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e1

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    15.36 mm

  • Package Length:

    27.9 mm

  • Package Style:

    SMT

  • Package Width:

    19.8 mm

  • Packing Method:

    Tray

  • Rated Current-Max:

    30 A

  • Reference Standard:

    AEC-Q200

  • Self Resonance Frequency:

    10 MHz

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Placement:

    SINGLE IN-LINE

  • Terminal Shape:

    GULL WING

  • Test Frequency:

    0.5 MHz

  • Tolerance:

    10%
