SER2915H-472KL - COILCRAFT

Description: Fixed Inductors SER2915H AEC-Q200 4.7 uH 10 % 30 A

Download SER2915H-472KL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SER2915H-472KL - COILCRAFT - PCB symbol
click to zoom
PCB Footprints

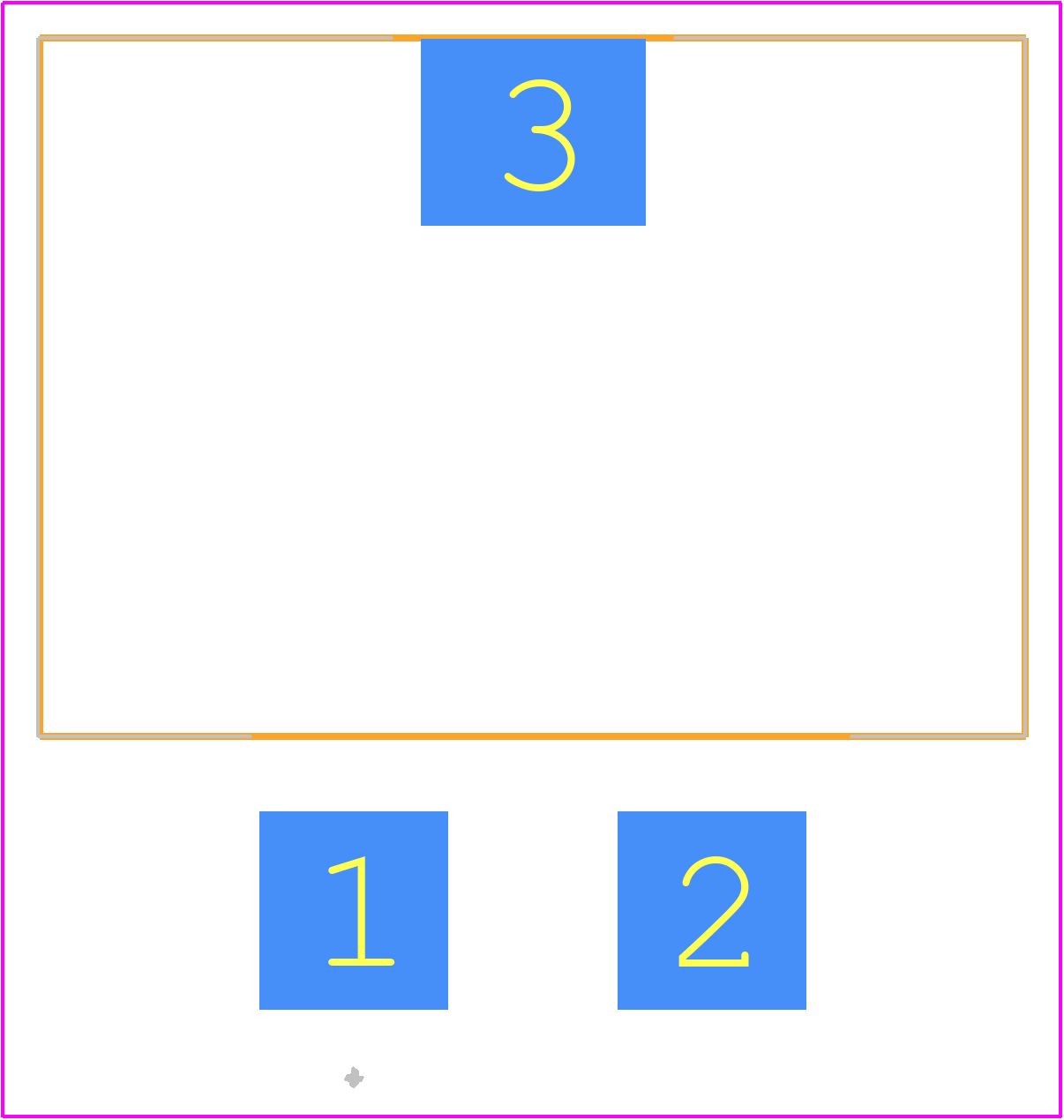

SER2915H-472KL - COILCRAFT PCB footprint - Other - Other - SER2915H-472KL-1
click to zoom
3D Models
SER2915H-472KL - COILCRAFT - 3D model - Other - SER2915H-472KL-1
click to zoom

SER2915H-472KL Details

  • Manufacturer Part Number:

    SER2915H-472KL

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6.6

  • Core Material:

    FERRITE

  • DC Resistance:

    0.00205 Ω

  • Inductance-Nom (L):

    4.7 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e2

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    15.36 mm

  • Package Length:

    27.9 mm

  • Package Style:

    SMT

  • Package Width:

    19.8 mm

  • Packing Method:

    Tray

  • Rated Current-Max:

    30 A

  • Reference Standard:

    AEC-Q200

  • Self Resonance Frequency:

    25 MHz

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver (Sn/Ag)

  • Terminal Placement:

    SINGLE IN-LINE

  • Terminal Shape:

    GULL WING

  • Test Frequency:

    0.5 MHz

  • Tolerance:

    10%

SER2915H-472KL Frequently Asked Questions (FAQs)

  • The recommended land pattern for the SER2915H-472KL can be found in Coilcraft's application note AN-320, which provides a detailed layout guide for this component.
  • The SER2915H-472KL has a maximum operating temperature of 125°C. Ensure proper thermal management by providing adequate airflow, using thermal vias, and keeping the component away from heat sources.
  • The SRF of the SER2915H-472KL is not explicitly stated in the datasheet. However, Coilcraft provides an SRF calculator tool on their website, which can be used to estimate the SRF based on the inductor's characteristics.
  • The SER2915H-472KL is a surface-mount device and can be susceptible to vibration-induced failure. Coilcraft recommends using a vibration-dampening material or a more robust mounting method to ensure reliability in high-vibration environments.
  • The optimal operating frequency for the SER2915H-472KL depends on the specific application and circuit design. Consult Coilcraft's application notes and simulation tools to determine the optimal frequency range for your specific use case.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SER2915H-472KL Overview

Use the download button to access the SER2915H-472KL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SER29, or try a keyword search, such as Fixed Inductors

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
