Part Image

SER2915L-223KL - COILCRAFT

Description: Power Inductors - SMD 22uH Shld 20% 6.8A 1.65mOhms AECQ2

Download SER2915L-223KL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SER2915L-223KL - COILCRAFT - PCB symbol
click to zoom

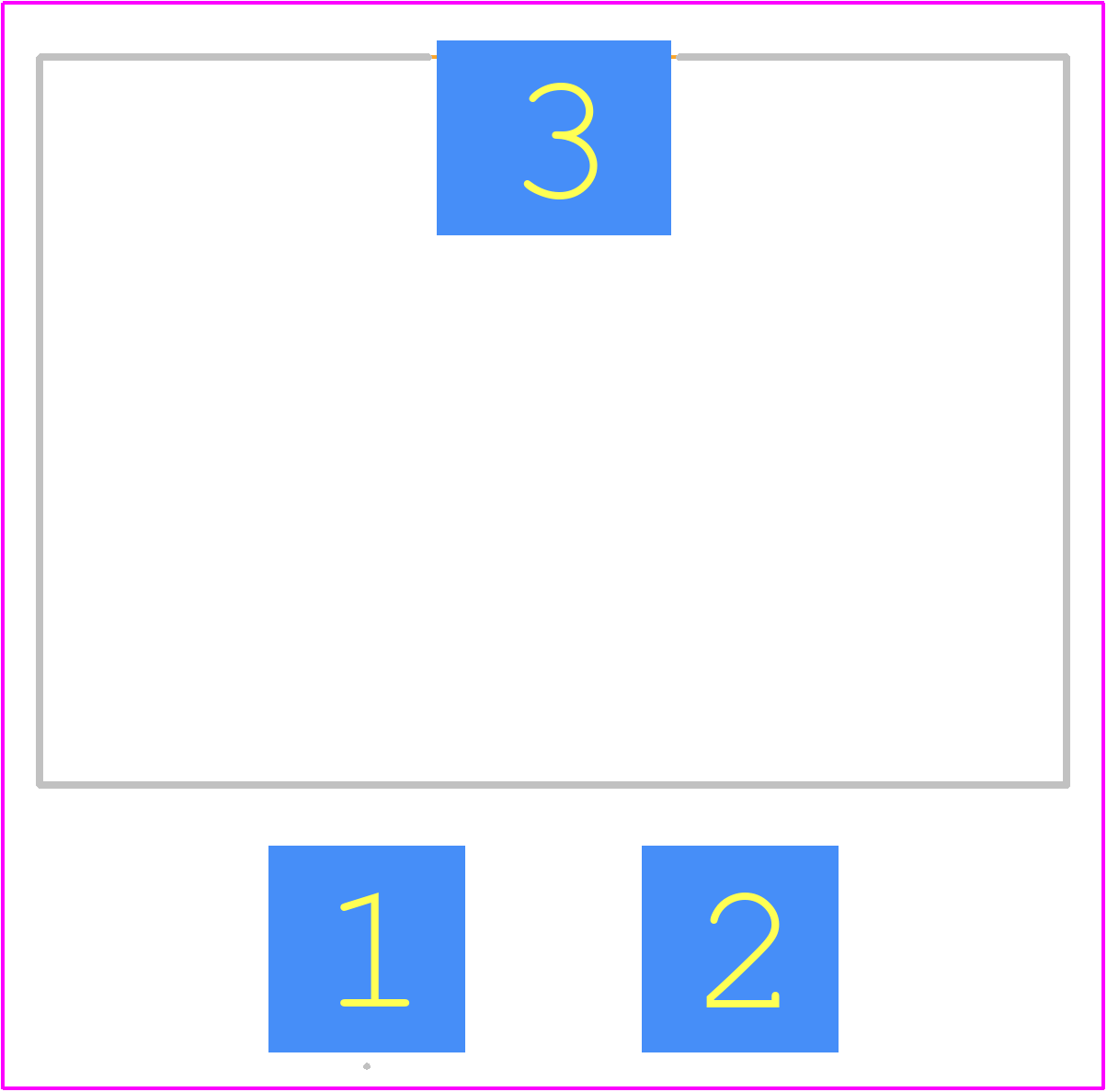

PCB Footprints
SER2915L-223KL - COILCRAFT PCB footprint - Other - Other - SER2915L-223KL-2
click to zoom

SER2915L-223KL Details

  • Manufacturer Part Number:

    SER2915L-223KL

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6.6

  • Core Material:

    FERRITE

  • DC Resistance:

    0.00165 Ω

  • Inductance-Nom (L):

    22 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e1

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    15.36 mm

  • Package Length:

    27.9 mm

  • Package Style:

    SMT

  • Package Width:

    19.8 mm

  • Packing Method:

    Tray

  • Rated Current-Max:

    30 A

  • Reference Standard:

    AEC-Q200

  • Self Resonance Frequency:

    10 MHz

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Placement:

    SINGLE IN-LINE

  • Terminal Shape:

    GULL WING

  • Test Frequency:

    0.5 MHz

  • Tolerance:

    10%

SER2915L-223KL Frequently Asked Questions (FAQs)

  • The recommended land pattern for the SER2915L-223KL is a rectangular pad with a size of 2.5 mm x 1.5 mm, with a non-solder mask defined (NSMD) pad shape.
  • The SER2915L-223KL has a maximum operating temperature of 125°C. Ensure good airflow around the inductor, and consider using a heat sink or thermal interface material if operating in high-temperature environments.
  • The SRF of the SER2915L-223KL is approximately 150 MHz. This is important to consider when designing filters or impedance matching networks.
  • While the SER2915L-223KL is a high-quality inductor, it is not specifically designed for high-reliability or aerospace applications. For such applications, consider using inductors with specific certifications, such as MIL-PRF-83446 or ESCC 4001.
  • The saturation current of the SER2915L-223KL can be determined by consulting the inductor's BH curve, which is typically provided in the datasheet or upon request from Coilcraft Inc.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SER2915L-223KL Overview

Use the download button to access the SER2915L-223KL schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SER29, or try a keyword search, such as Fixed Inductors

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
