SER2918H-223KL - COILCRAFT

Description: Fixed Inductors 22uH Shld 20% 28A 2.86mOhms AECQ2

Download SER2918H-223KL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SER2918H-223KL - COILCRAFT - PCB symbol
click to zoom
PCB Footprints

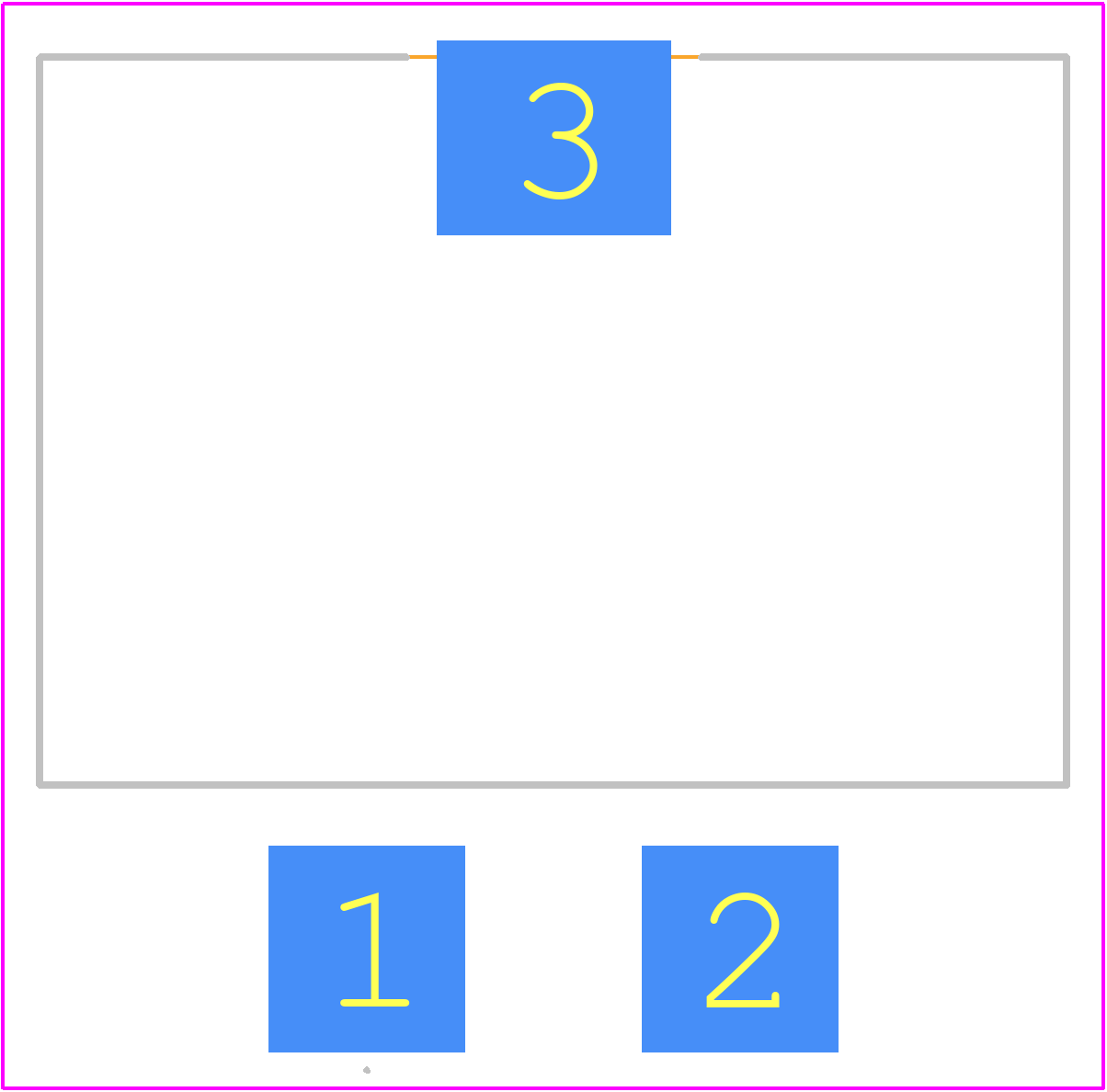

SER2918H-223KL - COILCRAFT PCB footprint - Other - Other - SER2918H-223KL-4
click to zoom
3D Models
SER2918H-223KL - COILCRAFT - 3D model - Other - SER2918H-223KL-4
click to zoom

SER2918H-223KL Details

  • Manufacturer Part Number:

    SER2918H-223KL

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6.6

  • Core Material:

    FERRITE

  • DC Resistance:

    0.00286 Ω

  • Inductance-Nom (L):

    22 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e1

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    17.78 mm

  • Package Length:

    27.9 mm

  • Package Style:

    SMT

  • Package Width:

    19.8 mm

  • Packing Method:

    Tray

  • Rated Current-Max:

    28 A

  • Reference Standard:

    AEC-Q200

  • Self Resonance Frequency:

    15 MHz

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN SILVER COPPER

  • Terminal Placement:

    SINGLE IN-LINE

  • Terminal Shape:

    GULL WING

  • Test Frequency:

    0.5 MHz

  • Tolerance:

    10%

SER2918H-223KL Frequently Asked Questions (FAQs)

  • The recommended land pattern for the SER2918H-223KL can be found in Coilcraft's application note AN-320, which provides guidelines for PCB layout and land pattern design.
  • The SER2918H-223KL has a maximum operating temperature of 125°C. Ensure proper thermal management by providing adequate airflow, using thermal vias, and keeping the component away from heat sources.
  • The SRF of the SER2918H-223KL is not explicitly stated in the datasheet. However, Coilcraft provides an SRF calculator tool on their website, which can be used to estimate the SRF based on the inductor's characteristics.
  • The SER2918H-223KL is a commercial-grade inductor, but Coilcraft offers equivalent high-reliability versions, such as the SER2918H-223KL-T, which meet the requirements of aerospace and high-reliability applications.
  • The saturation current of the SER2918H-223KL can be determined by reviewing the inductor's DC current rating and the application's specific requirements. Coilcraft's application note AN-320 provides guidance on calculating the saturation current.
