- Part Number SF2353E
- Manufacturer Murata Electronics
- Pin Count 6
- Part Category Filter
- Package Category Other
- Footprint Name Other - SF2353E-2
- Released Date Jul 22, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
SF2353E Details
-
Manufacturer Part Number:
SF2353E
-
Part Life Cycle Code:
Obsolete
-
Manufacturer:
Murata Manufacturing Co Ltd
-
YTEOL:
0
-
Additional Feature:
TR, 7/13 INCH; TEMPERATURE OF -40 TO 85 ALSO AVAILABLE
-
Center or Cutoff Frequency (fo/fc):
1582.4 MHz
-
Filter Type:
SAW FILTER
-
Height:
1.4 mm
-
Input Impedance:
50 OHM
-
Insertion Loss-Max:
2.2 dB
-
Length:
3.1 mm
SF2353E Frequently Asked Questions (FAQs)
-
Murata recommends a 4-layer PCB with a solid ground plane and a separate power plane for the VCC and GND pins. A minimum of 10 mils (0.25 mm) spacing between the component and the PCB edge is recommended.
-
Ensure good airflow around the component, avoid blocking the airflow, and use a heat sink if necessary. The device should be mounted on a PCB with a thermal via to dissipate heat efficiently.
-
Murata recommends a soldering profile with a peak temperature of 240°C (464°F) for 3-5 seconds, with a ramp-up rate of 1-2°C/s and a ramp-down rate of 1-2°C/s.
-
Yes, the SF2353E is designed to withstand vibrations up to 10 G (98 m/s²) in the frequency range of 10-2000 Hz. However, it's recommended to secure the component using a suitable adhesive or mechanical fastening to prevent movement during vibration.
-
Handle the component by the body, avoiding touching the pins or electrical connections. Use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD) damage.
Trust Checks
Expert Contribution
System Verified
Community Approved
SF2353E Overview

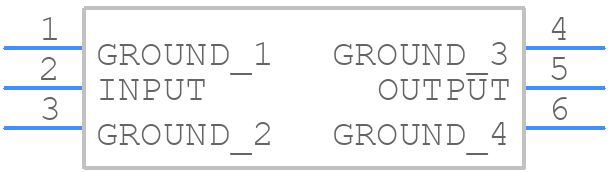

Use the download button to access the SF2353E schematic symbol, PCB footprint, and 3D model.
