Panasonic recommends a PCB layout with a solid ground plane, minimal track length, and a decoupling capacitor (e.g., 10uF) close to the VCC pin to reduce noise and ensure stable operation.
To ensure reliability, follow Panasonic's recommended operating temperature range (–40°C to +85°C), use a heat sink if necessary, and avoid exceeding the maximum junction temperature (125°C). Also, consider using a thermally conductive material for the PCB and ensuring good airflow around the component.
Although the datasheet specifies a maximum voltage of 5V, Panasonic recommends not exceeding 4.5V to ensure reliable operation and prevent damage to the component.
Yes, the SF3-DC5V can be used in switching power supply applications, but ensure that the input voltage is within the recommended range, and the component is properly decoupled to minimize noise and voltage spikes.
To troubleshoot issues, check the power supply voltage, ensure proper decoupling, verify the PCB layout, and inspect the component for signs of physical damage or overheating. Also, consult Panasonic's application notes and technical support resources for guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SF3-DC5V Overview

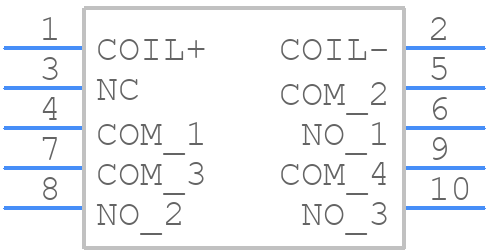

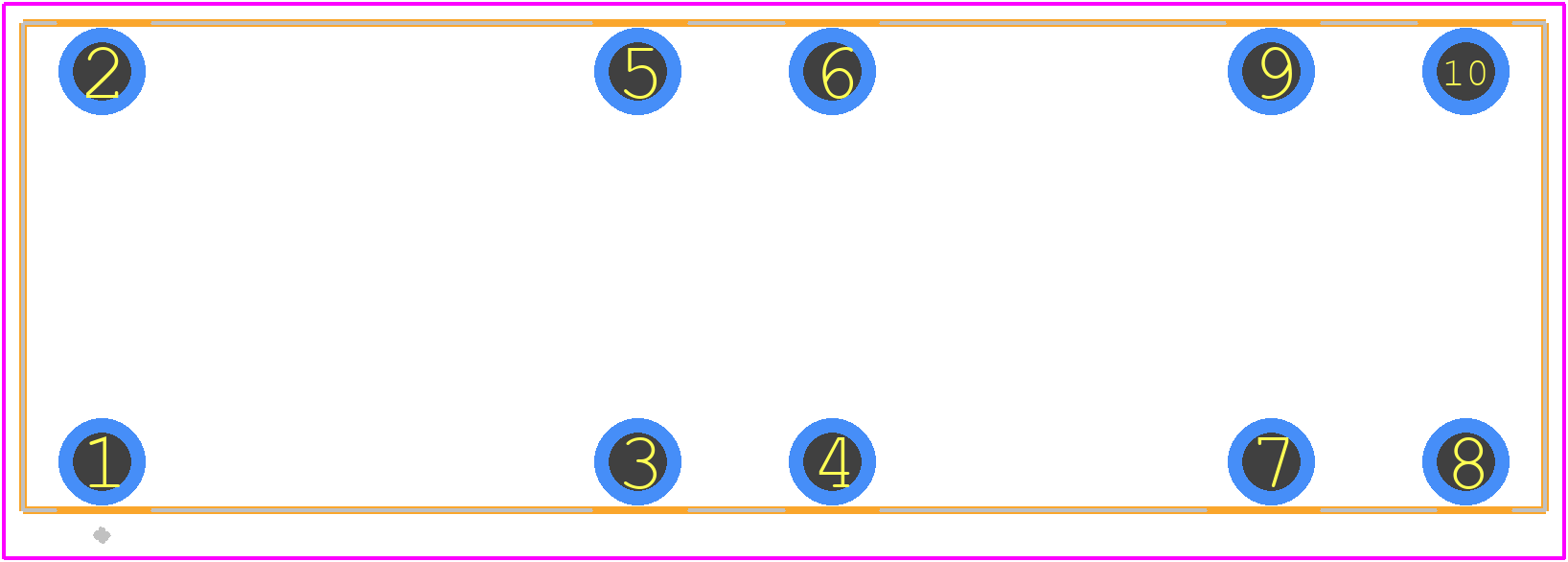

Use the download button to access the SF3-DC5V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SF3-D,
or try a keyword search, such as Special Relays
