A good PCB layout for SF4D-DC24V involves keeping the input and output capacitors close to the module, using a solid ground plane, and minimizing the length of the input and output cables. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure reliability in high-temperature environments, ensure good airflow around the module, avoid overheating, and follow the recommended derating curves for temperature. Also, consider using a heat sink or a thermal interface material to improve heat dissipation.
To minimize EMI and EMC issues, use a metal enclosure, keep the input and output cables short and shielded, and add EMI filters or common-mode chokes as needed. Also, ensure that the module is properly grounded and follow the recommended layout guidelines.
Yes, SF4D-DC24V can be used in a redundant or parallel configuration to achieve higher power output or redundancy. However, ensure that the modules are properly synchronized and that the output voltages are matched to avoid any damage or instability.
Ensure that the module is installed and used in accordance with the safety guidelines and regulations, such as UL and IEC standards. Also, follow proper electrical safety practices, such as using protective equipment and avoiding electrical shock hazards.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SF4D-DC24V Overview

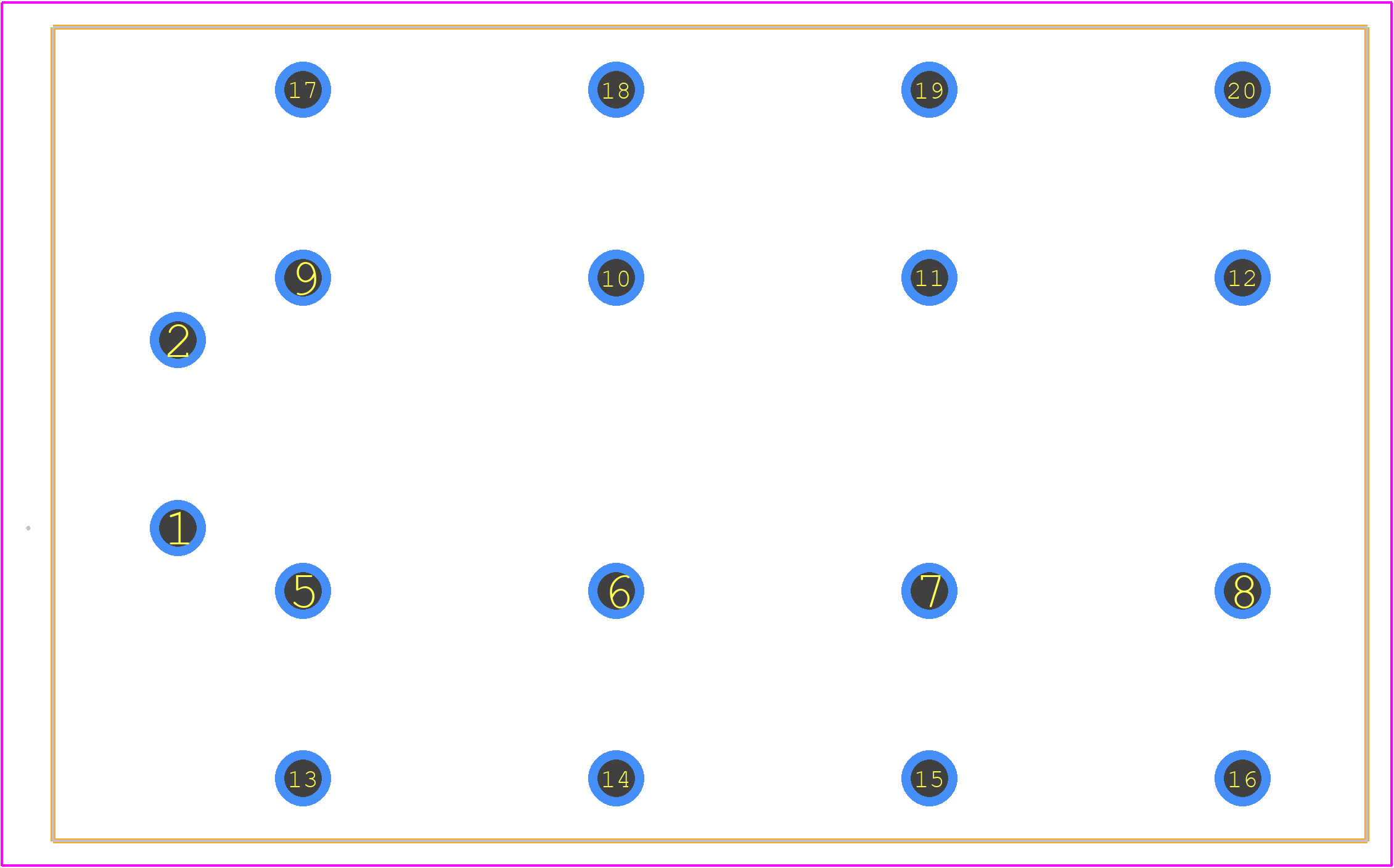

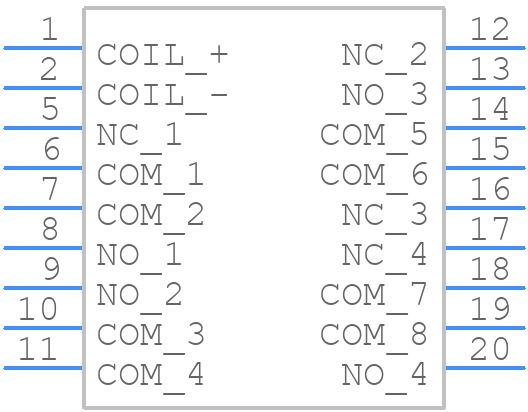

Use the download button to access the SF4D-DC24V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SF4D-,
or try a keyword search, such as Special Relays
Suggested Parts
If you searched for SF4D-DC24V, you might also be interested in these parts:
