Panasonic recommends a PCB layout with a large ground plane, short and wide traces for the high-frequency signals, and a decoupling capacitor (e.g., 100nF) close to the device to reduce noise and ensure stable operation.
Follow Panasonic's recommended soldering conditions (e.g., 260°C peak temperature, 10s reflow time) and use a solder paste with a melting point above 217°C. Ensure the device is mounted on a flat, clean PCB surface, and use a suitable adhesive or mechanical fastening method to secure it.
While the datasheet specifies an operating temperature range of -40°C to 125°C, it's essential to note that the device's performance and reliability may degrade above 100°C. For optimal performance, it's recommended to operate the device within the -20°C to 85°C range.
While the SF4D-DC60V is designed to operate in a variety of environments, it's not recommended for use in high-humidity conditions (above 80% RH) without proper protection. Consider using a conformal coating or potting compound to protect the device from moisture.
Start by verifying the power supply voltage, current, and temperature. Check for any signs of physical damage, contamination, or soldering issues. Use an oscilloscope to analyze the device's input and output signals, and consult Panasonic's application notes and technical support resources for guidance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SF4D-DC60V Overview

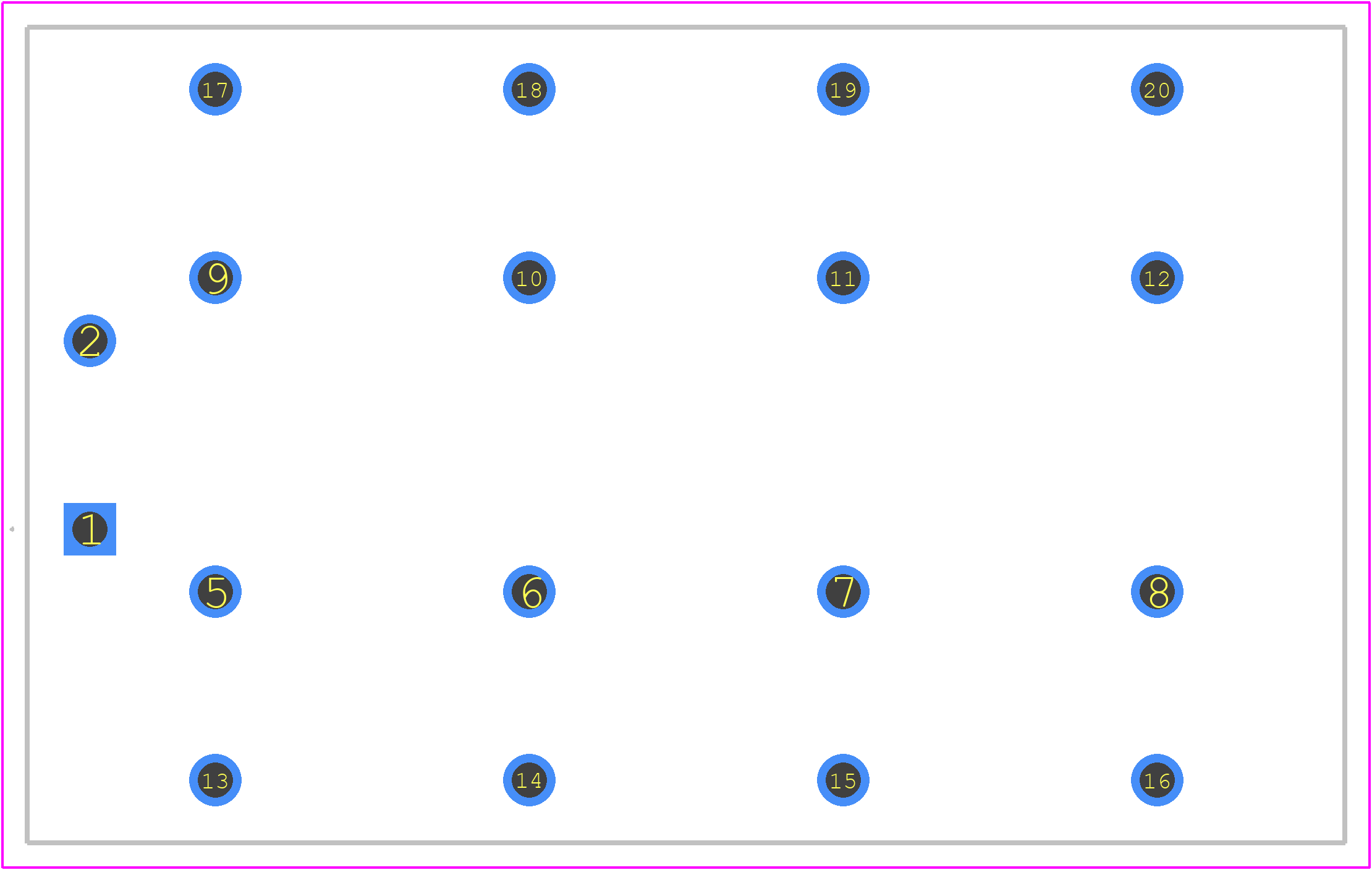

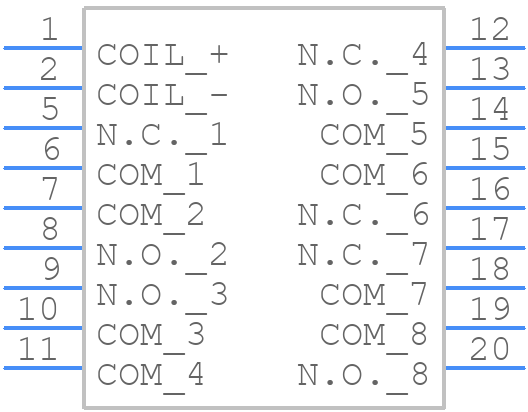

Use the download button to access the SF4D-DC60V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SF4D-,
or try a keyword search, such as Special Relays
