- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for SFH601-3
- Part Number SFH601-3
- Manufacturer Vishay
- Pin Count 6
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages
- Footprint Name Dual-In-Line Packages - DIP-6(height 4.61mm)
- Released Date Oct 23, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
SFH601-3 Details
-
Manufacturer Part Number:
SFH601-3
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8541.40.80.00
-
Factory Lead Time:
10 Weeks
-
Date Of Intro:
1993-01-01
-
Manufacturer:
Vishay Intertechnologies
-
YTEOL:
6
-
Coll-Emtr Bkdn Voltage-Min:
100 V
SFH601-3 Frequently Asked Questions (FAQs)
-
The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 10 seconds.
-
Handle the device by the body, avoid touching the optical surface, and store it in a dry, dark place to prevent damage from light, moisture, and electrostatic discharge.
-
The recommended operating temperature range is -40°C to 100°C (-40°F to 212°F).
-
No, the SFH601-3 is not suitable for high-humidity environments. It's recommended to use the device in a dry environment with a relative humidity below 60%.
-
Use a soft, dry brush or a lint-free cloth to gently remove any debris. Avoid using chemicals, solvents, or abrasive materials that can damage the optical surface.
Trust Checks
Community Provided
System Verified
Community Approved
SFH601-3 Overview

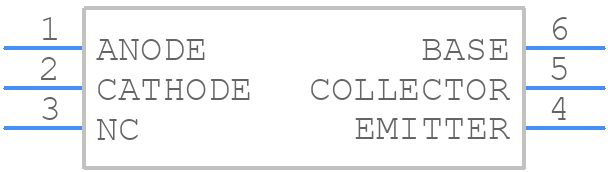

Use the download button to access the SFH601-3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SFH60,
or try a keyword search, such as Optocoupler
