SFH6316T - Vishay

Description: Vishay SFH6316T DC Input, Transistor Output Optocoupler, SMT SOIC-N 8

Download SFH6316T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

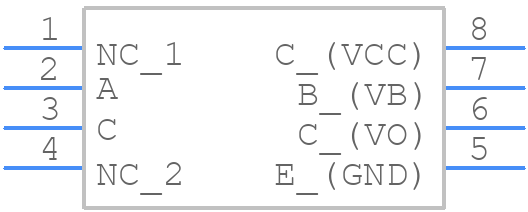

Symbol
SFH6316T - Vishay - PCB symbol
click to zoom
PCB Footprints
SFH6316T - Vishay PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8 Pin Dip_2
click to zoom
3D Models
SFH6316T - Vishay - 3D model - Dual-In-Line Packages - 8 Pin Dip_2
click to zoom

SFH6316T Details

  • Manufacturer Part Number:

    SFH6316T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    8

  • Additional Feature:

    TTL COMPATIBLE

  • Configuration:

    SINGLE

  • Data Rate-Nom:

    1 MBps

  • Forward Current-Max:

    0.025 A

  • Isolation Voltage-Max:

    3000 V

  • JESD-609 Code:

    e3

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.008 A

  • Operating Temperature-Max:

    70 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Terminal Finish:

    Tin (Sn)

SFH6316T Frequently Asked Questions (FAQs)

  • The recommended soldering temperature profile for the SFH 6316T is a peak temperature of 260°C for 10-30 seconds, with a ramp-up rate of 3°C/s and a ramp-down rate of 6°C/s.
  • Handle the SFH 6316T by the body, avoiding touching the optical surfaces or electrical pins. Use an anti-static wrist strap or mat to prevent electrostatic discharge damage.
  • The maximum allowable voltage for the SFH 6316T is 5V, exceeding which may cause permanent damage to the device.
  • The SFH 6316T is rated for operation up to 85°C, but it's not recommended for use in high-temperature environments above 100°C without proper heat sinking and thermal management.
  • Use a soft, dry brush or a lint-free cloth to gently remove any debris or dust from the optical surfaces. Avoid using chemicals, solvents, or abrasive materials that may damage the surfaces.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SFH6316T Overview

Use the download button to access the SFH6316T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SFH63, or try a keyword search, such as Optocoupler
