A recommended PCB layout for SFH6318T includes a ground plane, short traces, and minimal vias to reduce EMI and noise. A 4-layer PCB with a dedicated ground plane and power plane is recommended. Additionally, keep the photodiode and amplifier close together to minimize noise and parasitic capacitance.
To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground plane. The recommended bias current is 10mA to 20mA, which can be achieved using a resistor divider network or a dedicated voltage regulator. Ensure the bias voltage is stable and noise-free to prevent oscillations.
The SFH6318T is rated for operation from -40°C to 100°C. However, it's recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance and reliability. Exceeding the maximum temperature range may affect the device's accuracy, stability, and lifespan.
To prevent electrostatic discharge (ESD) damage, handle the SFH6318T with ESD-safe materials, such as wrist straps, mats, and tweezers. Ensure the PCB is designed with ESD protection in mind, including TVS diodes, resistors, and capacitors. Follow proper soldering and assembly procedures to prevent ESD damage during manufacturing.
Store the SFH6318T in a dry, cool place, away from direct sunlight and moisture. Handle the device by the body, avoiding touching the pins or leads. Use anti-static packaging materials, such as foam or bubble wrap, to prevent ESD damage during shipping and storage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SFH6318T Overview

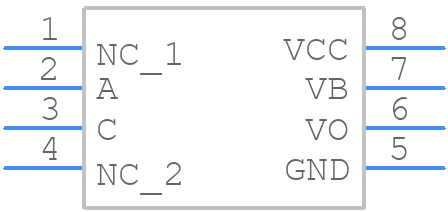

Use the download button to access the SFH6318T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SFH63,
or try a keyword search, such as Optocoupler
