SFH6319T footprint, schematic symbol and 3D model by Vishay

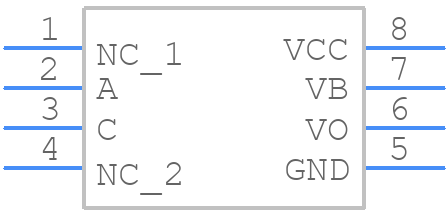

Symbol

PCB Footprints

3D Models

SFH6319T Details

The recommended soldering temperature profile for the SFH 6319T is a peak temperature of 260°C for a maximum of 10 seconds, with a ramp-up rate of 3°C/s and a ramp-down rate of 6°C/s.
Handle the SFH 6319T by the body, avoiding touching the optical surfaces or electrical pins. Use an anti-static wrist strap or mat to prevent electrostatic discharge damage.
The maximum allowable voltage for the SFH 6319T is 5V, exceeding which may cause permanent damage to the device.
The SFH 6319T is rated for operation up to 85°C, but it's not recommended for use in high-temperature environments above 100°C, as it may affect the device's reliability and lifespan.
Use a soft, dry brush or a lint-free cloth to gently remove any debris or contaminants from the optical surfaces. Avoid using chemicals, solvents, or abrasive materials that may damage the surfaces.

Community Provided

System Verified

Community Approved

Use the download button to access the SFH6319T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SFH63, or try a keyword search, such as Optocoupler
