SFH6325-X009T footprint, schematic symbol and 3D model by Vishay

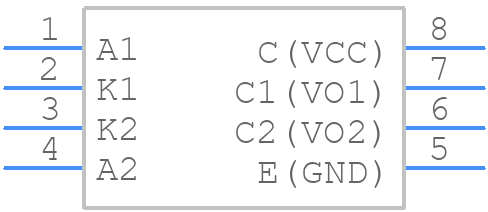

Symbol

PCB Footprints

SFH6325-X009T Details

The recommended storage condition for SFH 6325-X009T is in a dry, dark place at room temperature (20°C to 30°C) and humidity below 60%. Avoid exposure to direct sunlight, moisture, and extreme temperatures.
Handle the SFH 6325-X009T by the edges to prevent damage to the optical surface. Avoid touching the optical surface, as oils from skin can cause damage. Use an anti-static wrist strap or mat to prevent electrostatic discharge.
The maximum power rating for the SFH 6325-X009T is 1W. Exceeding this rating may cause damage to the device.
The SFH 6325-X009T is rated for operation up to 85°C. However, it's recommended to derate the power input at higher temperatures to prevent thermal damage. Consult the datasheet for specific derating guidelines.
Use a soldering iron with a temperature of 250°C to 260°C. Apply a small amount of solder to the leads, and ensure the solder flows smoothly and evenly. Avoid applying excessive heat or force, which can cause damage to the device.

Community Provided

System Verified

Community Approved

Use the download button to access the SFH6325-X009T schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like SFH63, or try a keyword search, such as Optocoupler
