SFH6756T - Vishay

Description: High Speed Optocouplers 10Mbd Low Input Curr Dual Channel

Download SFH6756T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

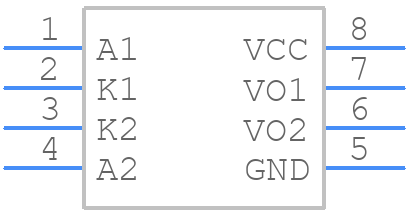

SFH6756T - Vishay - PCB symbol
click to zoom
PCB Footprints
SFH6756T - Vishay PCB footprint - Other - Other - SOIC-8
click to zoom

SFH6756T Details

  • Manufacturer Part Number:

    SFH6756T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    111 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    0

  • Additional Feature:

    UL APPROVED

  • Configuration:

    SEPARATE, 2 CHANNELS

  • Data Rate-Nom:

    10 MBps

  • Forward Current-Max:

    0.02 A

  • Forward Voltage-Max:

    1.7 V

  • Hysteresis Ratio-Nom:

    0.0167

  • Isolation Voltage-Max:

    4000 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    2

  • Number of Functions:

    2

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.06 W

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

SFH6756T Frequently Asked Questions (FAQs)

  • A good PCB layout for SFH6756T involves keeping the photodiode and transimpedance amplifier close together, using a ground plane to reduce noise, and minimizing the length of the traces to reduce capacitance and inductance.
  • The feedback resistor (Rf) value depends on the desired transimpedance gain and bandwidth. A higher Rf value increases gain but reduces bandwidth. A good starting point is to use the recommended value in the datasheet (e.g., 1 kΩ) and adjust based on specific application requirements.
  • The maximum allowable voltage for the SFH6756T is 6 V, which is the maximum rating for the photodiode. Exceeding this voltage can cause damage to the device.
  • ESD protection is crucial for the SFH6756T. Use ESD-sensitive handling procedures, and consider adding external ESD protection devices (e.g., TVS diodes) to the PCB design to prevent damage from electrostatic discharge.
  • The typical operating temperature range for the SFH6756T is -40°C to 85°C. However, the device can operate up to 100°C with reduced performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SFH6756T Overview

Use the download button to access the SFH6756T schematic symbol and PCB footprint.
