A good PCB layout for SFH6943A-3 involves keeping the photodiode and emitter as close as possible, using a ground plane to reduce noise, and minimizing the length of the traces to reduce parasitic inductance.
To ensure reliable operation over the entire temperature range, it's essential to follow the recommended operating conditions, use a suitable thermal management system, and consider the temperature coefficient of the device when designing the circuit.
Although the datasheet specifies a maximum voltage of 3.5V, it's recommended to operate the device at a maximum voltage of 3.3V to ensure reliable operation and minimize the risk of damage.
To minimize the impact of EMI, use shielding, keep the device away from high-frequency sources, and use a low-pass filter or ferrite bead to filter out high-frequency noise.
Store the SFH6943A-3 in a dry, dark place with a temperature range of -20°C to 40°C and relative humidity below 60%. Avoid exposing the device to direct sunlight, moisture, or extreme temperatures.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SFH6943A-3 Overview

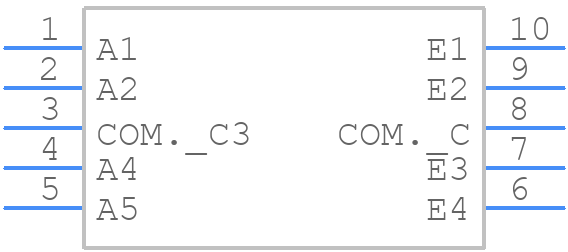

Use the download button to access the SFH6943A-3 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SFH69,
or try a keyword search, such as Optocoupler
