The recommended mating sequence is to mate the connectors in a perpendicular direction, ensuring the guide pins are aligned. Then, rotate the connectors to the mated position, ensuring the latches engage securely.
Follow Samtec's recommended PCB layout and trace routing guidelines, such as maintaining a consistent impedance, using differential pair spacing, and minimizing vias and bends. Consult Samtec's application notes and simulation tools for specific guidance.
The SFM-120-T2-S-D connector is rated for operation from -40°C to 105°C. However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
While the SFM-120-T2-S-D connector is suitable for high-speed applications, it's essential to evaluate the specific signal integrity requirements and ensure the connector meets those demands. Samtec provides simulation tools and models to aid in the design process.
The recommended torque specification for securing the SFM-120-T2-S-D connector to the PCB is 0.5 N·m (5 in·lb) maximum. Over-torquing can damage the connector or PCB.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SFM-120-T2-S-D Overview

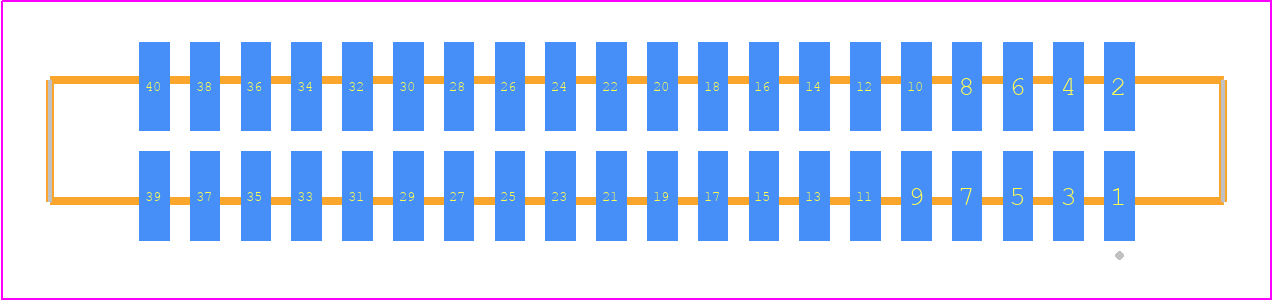

Use the download button to access the SFM-120-T2-S-D schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SFM-1,
or try a keyword search, such as Headers and Edge Type Connectors
