SFM-150-L2-S-D-A footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

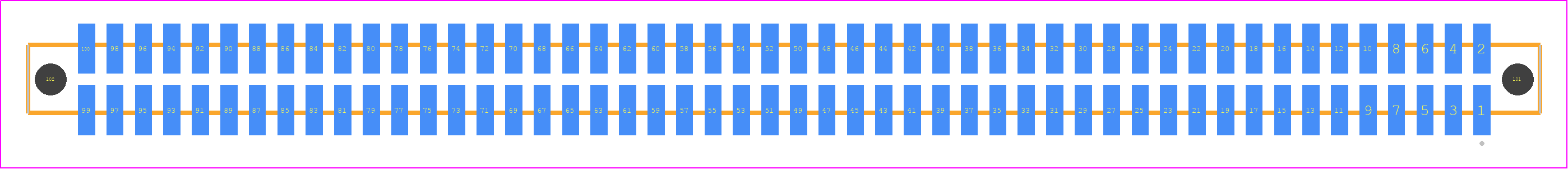

SFM-150-L2-S-D-A - SAMTEC PCB footprint - Other - Other - SFM-150-YY-ZZZ-D-A

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SFM-150-L2-S-D-A
Part Number SFM-150-L2-S-D-A
Manufacturer SAMTEC
Pin Count 100
Part Category Connector
Package Category Other
Footprint Name Other - SFM-150-YY-ZZZ-D-A
Released Date Jun 28, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SFM-150-L2-S-D-A Details

Manufacturer Part Number:
SFM-150-L2-S-D-A
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
France, Malaysia
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
1 Week
Manufacturer:
Samtec Inc
YTEOL:
9.4
Additional Feature:
TIGER EYE CONTACT
Body Breadth:
0.145 inch
Body Depth:
0.19 inch
Body Length:
2.515 inch
Body/Shell Style:
SOCKET
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
GOLD (30)
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
Contact Pattern:
RECTANGULAR
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insertion Force-Max:
.3892 N
Insulator Color:
BLACK
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Contact Pitch:
0.05 inch
Mating Contact Row Spacing:
0.05 inch
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Plating Thickness:
30u inch
Reference Standard:
UL
Terminal Pitch:
1.27 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
100

SFM-150-L2-S-D-A Frequently Asked Questions (FAQs)

The recommended mating sequence is to mate the guides first, followed by the contacts. This ensures proper alignment and prevents damage to the connectors.
Yes, SFM-150-L2-S-D-A connectors are designed to withstand high-vibration environments. However, it's essential to follow proper mounting and screw torque procedures to ensure reliable connections.
The maximum operating temperature range for SFM-150-L2-S-D-A connectors is -55°C to 125°C. However, it's essential to note that the temperature range may vary depending on the specific application and environment.
Yes, SFM-150-L2-S-D-A connectors are compatible with lead-free soldering processes. Samtec Inc. recommends following the recommended soldering profile and procedures to ensure reliable connections.
The typical lead time for SFM-150-L2-S-D-A connectors can vary depending on the quantity, packaging, and shipping location. It's best to check with Samtec Inc. or an authorized distributor for the most up-to-date lead time information.
