SFM-150-T2-STL-D-LC footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

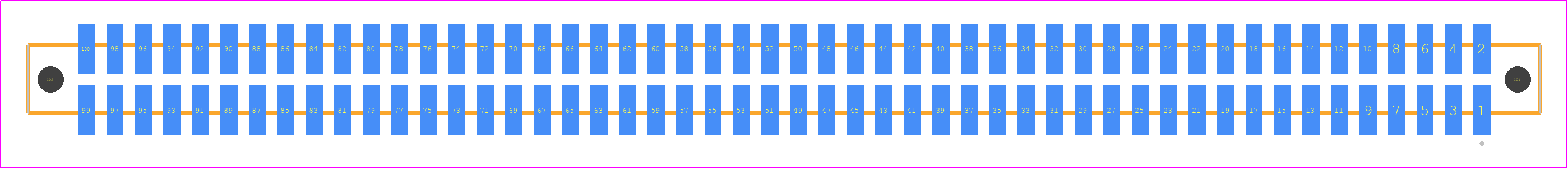

SFM-150-T2-STL-D-LC - SAMTEC PCB footprint - Other - Other - SFM-150-YY-ZZZ-D-LC

click to zoom

3D Models

SFM-150-T2-STL-D-LC - SAMTEC - 3D model - Other - SFM-150-YY-ZZZ-D-LC

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SFM-150-T2-STL-D-LC
Part Number SFM-150-T2-STL-D-LC
Manufacturer SAMTEC
Pin Count 100
Part Category Connector
Package Category Other
Footprint Name Other - SFM-150-YY-ZZZ-D-LC
Released Date Jun 28, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SFM-150-T2-STL-D-LC Details

Manufacturer Part Number:
SFM-150-T2-STL-D-LC
Manufacturer:
Samtec Inc

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

SFM-150-T2-STL-D-LC Overview

Use the download button to access the SFM-150-T2-STL-D-LC schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SFM-1, or try a keyword search, such as Headers and Edge Type Connectors
