The recommended mating sequence for SFMC-106-02-SM-D is to mate the plug first, followed by the receptacle. This ensures proper alignment and minimizes the risk of damage to the connector pins.
Yes, the SFMC-106-02-SM-D is designed to withstand high-vibration environments. Samtec's SFMC series connectors are tested to meet the requirements of IEC 61373, which includes vibration testing. However, it's essential to follow proper mounting and installation procedures to ensure the connector's reliability in such environments.
The SFMC-106-02-SM-D has an operating temperature range of -55°C to +125°C. However, it's essential to note that the temperature rating may vary depending on the specific application and the materials used in the connector's construction.
The SFMC-106-02-SM-D has a moisture-resistant design, but it's not intended for immersion in water or exposure to high-pressure water jets. If you need to use the connector in a humid or wet environment, consider applying a conformal coating or using a connector with additional sealing features.
The recommended torque for the screw locks on the SFMC-106-02-SM-D is 0.5-1.5 N·m (4-12 in·lb). It's essential to follow the recommended torque specification to ensure proper mating and to prevent damage to the connector or the PCB.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SFMC-106-02-SM-D Overview

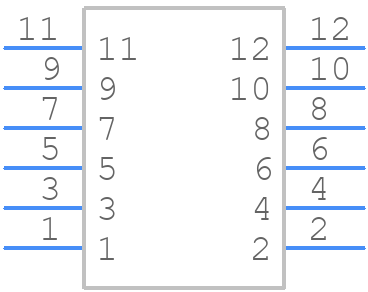

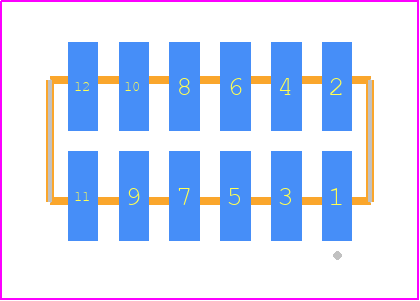

Use the download button to access the SFMC-106-02-SM-D schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SFMC-,
or try a keyword search, such as Headers and Edge Type Connectors
