The recommended torque for the screw terminals is 0.5-1.5 Nm (0.37-1.06 lbf-in) to ensure secure connection without damaging the terminals.
Yes, the SFMC-125-T1-S-D is designed to withstand vibration and shock according to IEC 61373 Cat 1, Class B, and EN 61373 standards. However, it's recommended to consult with Samtec's application engineers for specific vibration requirements.
The SFMC-125-T1-S-D has a rating of IP67, which means it can withstand temporary immersion in water up to 1m for 30 minutes. However, for prolonged outdoor use, it's recommended to apply additional protection such as conformal coating or potting to ensure reliability.
The SFMC-125-T1-S-D has a mating cycle life of 500 cycles minimum, which means it can withstand 500 connect-disconnect cycles without significant degradation in performance.
While it's possible to use a different wire gauge, it's not recommended as it may affect the connector's performance and reliability. The recommended wire gauge is 24-20 AWG. Consult with Samtec's application engineers for specific wire gauge requirements.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SFMC-125-T1-S-D Overview

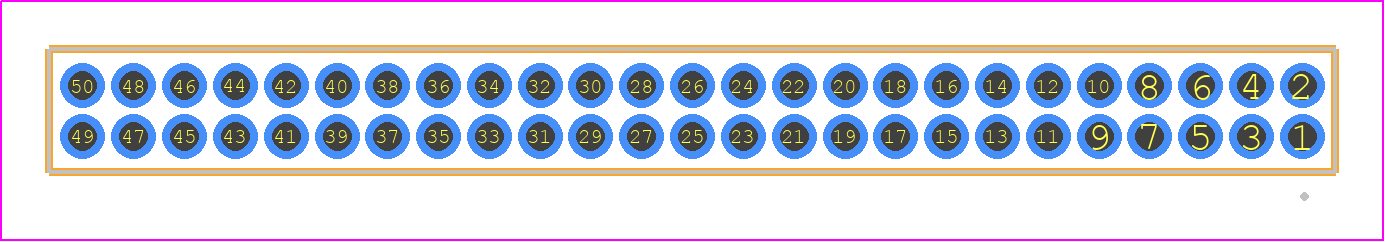

Use the download button to access the SFMC-125-T1-S-D schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SFMC-,
or try a keyword search, such as Headers and Edge Type Connectors
