SFML-107-T1-F-D - SAMTEC

Description: .050" Tiger Eye™ High-Reliability Locking Socket Strip

Download SFML-107-T1-F-D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

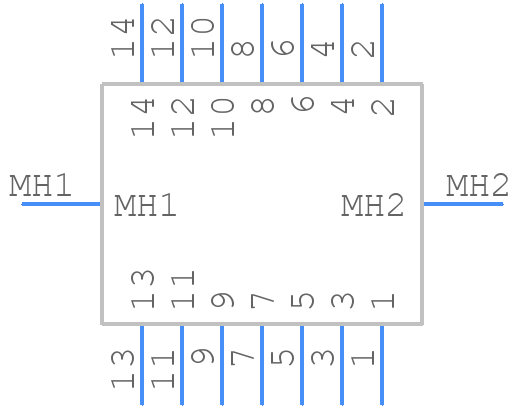

SFML-107-T1-F-D - SAMTEC - PCB symbol
click to zoom
PCB Footprints
SFML-107-T1-F-D - SAMTEC PCB footprint - Other - Other - SFML-107-T1-F-D-2
click to zoom
3D Models
SFML-107-T1-F-D - SAMTEC - 3D model - Other - SFML-107-T1-F-D-2
click to zoom

SFML-107-T1-F-D Details

  • Manufacturer Part Number:

    SFML-107-T1-F-D

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    France, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    9.15

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD FLASH

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    PHOSPHOR BRONZE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    3.2 A

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    14

SFML-107-T1-F-D Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the terminals.
  • Yes, the SFML-107-T1-F-D is designed to withstand high-vibration environments. Samtec's SFML series is tested to meet the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications with high vibration levels.
  • The operating temperature range for SFML-107-T1-F-D is -40°C to 105°C (-40°F to 221°F). This temperature range ensures reliable performance in various environmental conditions.
  • Yes, the SFML-107-T1-F-D is compatible with lead-free soldering processes. Samtec's SFML series is designed to meet the requirements of lead-free soldering, making it suitable for use in RoHS-compliant applications.
  • The mating cycle life for SFML-107-T1-F-D is 500 cycles minimum. This ensures that the connector can withstand repeated mating and unmating without compromising its performance or reliability.
