SFML-115-02-L-D-LC footprint, schematic symbol and 3D model by SAMTEC

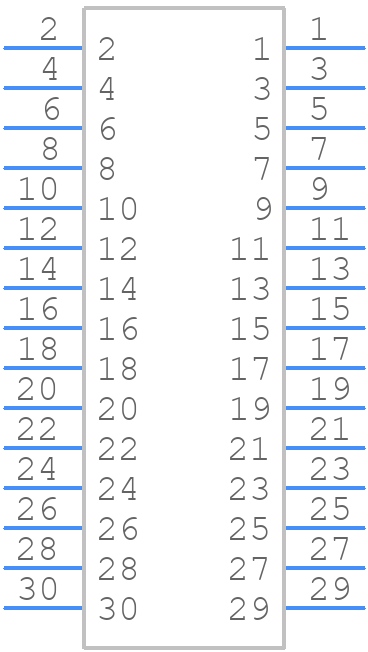

Symbol

click to zoom

PCB Footprints

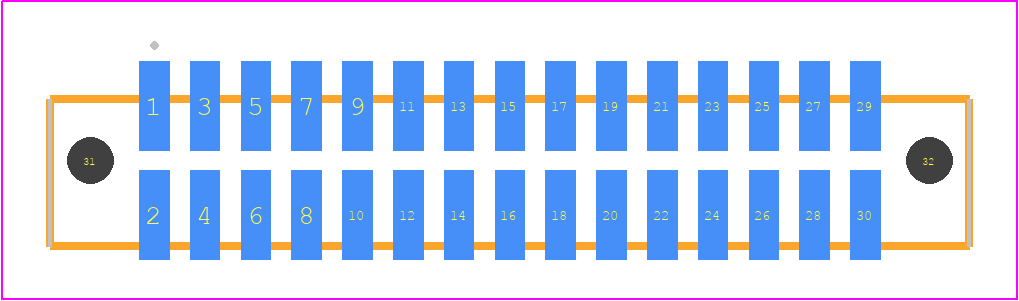

SFML-115-02-L-D-LC - SAMTEC PCB footprint - Other - Other - SFML-115-SS-YYY-D-LC

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SFML-115-02-L-D-LC
Part Number SFML-115-02-L-D-LC
Manufacturer SAMTEC
Pin Count 30
Part Category Connector
Package Category Other
Footprint Name Other - SFML-115-SS-YYY-D-LC
Released Date Jun 22, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SFML-115-02-L-D-LC Details

Manufacturer Part Number:
SFML-115-02-L-D-LC
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
Vietnam
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
4 Weeks, 6 Days
Manufacturer:
Samtec Inc
YTEOL:
12
Body/Shell Style:
SOCKET
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
GOLD
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
BERYLLIUM COPPER/PHOSPHOR BRONZE
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e3
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Rated Current (Signal):
3.2 A
Terminal Pitch:
1.27 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
30

SFML-115-02-L-D-LC Frequently Asked Questions (FAQs)

The recommended torque for the screw locks is 0.5-1.5 in-lbs (0.056-0.169 Nm) to ensure secure connection without damaging the connector.
Yes, SFML-115-02-L-D-LC is designed to withstand high-vibration environments. The connector's screw locks and rugged design ensure reliable connections even in harsh conditions.
The operating temperature range for SFML-115-02-L-D-LC is -55°C to +125°C, making it suitable for a wide range of applications, including industrial, automotive, and aerospace.
Yes, SFML-115-02-L-D-LC is compatible with lead-free soldering processes, making it compliant with RoHS and other environmental regulations.
The mating cycle life for SFML-115-02-L-D-LC is 500 cycles minimum, ensuring reliable connections even in applications with frequent mating and unmating.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

SFML-115-02-L-D-LC Overview

Use the download button to access the SFML-115-02-L-D-LC schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like SFML-, or try a keyword search, such as Headers and Edge Type Connectors
