SFML-115-02-S-D - SAMTEC

Description: 30 Position, .050" Tiger Eye™ High-Reliability Locking Socket Strip

Download SFML-115-02-S-D Model

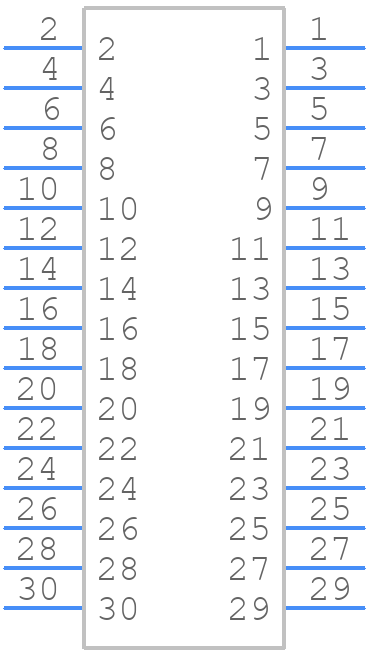

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SFML-115-02-S-D - SAMTEC PCB footprint - Other - Other - SFML-115-SS-YYY-D
click to zoom

SFML-115-02-S-D Details

  • Manufacturer Part Number:

    SFML-115-02-S-D

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    7 Weeks, 5 Days

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    9.4

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    PHOSPHOR BRONZE/BERYLLIUM COPPER

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    3.2 A

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    30

SFML-115-02-S-D Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks on SFML-115-02-S-D is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
  • Yes, SFML-115-02-S-D is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.
  • The maximum operating temperature for SFML-115-02-S-D is 125°C (257°F) according to the datasheet. However, it's recommended to derate the current carrying capacity at higher temperatures to ensure reliable operation.
  • Yes, SFML-115-02-S-D is compatible with lead-free soldering processes. Samtec recommends following the recommended soldering profile and ensuring proper solder joint quality to ensure reliable connections.
  • SFML-115-02-S-D is designed to meet the requirements of IPC-J-STD-001 for moisture and chemical resistance. However, it's recommended to follow proper cleaning and drying procedures after exposure to harsh environments to ensure reliable operation.
