The recommended mating sequence is to mate the connectors in a perpendicular orientation, ensuring the guide pins are aligned, and then rotate the connectors into their final position to prevent damage to the contacts.
Yes, SFML-125-02-F-D-A connectors are designed to withstand high-vibration environments. However, it's essential to follow proper mounting and screw torque procedures to ensure reliable connections.
The maximum operating temperature range for SFML-125-02-F-D-A connectors is -55°C to 125°C. However, it's essential to consider the temperature rating of the specific application and ensure the connectors are used within their recommended operating range.
Yes, SFML-125-02-F-D-A connectors are designed to be compatible with automated assembly processes, including pick-and-place machines and robotic assembly systems.
The recommended cleaning process for SFML-125-02-F-D-A connectors involves using a soft-bristled brush and a mild solvent, such as isopropyl alcohol, to remove dirt and debris. Avoid using harsh chemicals or abrasive materials that can damage the connectors.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SFML-125-02-F-D-A Overview

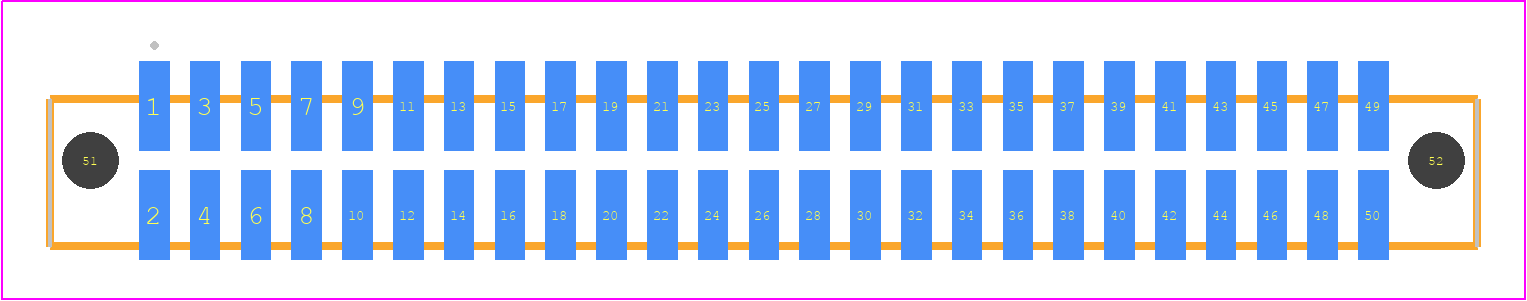

Use the download button to access the SFML-125-02-F-D-A schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SFML-,
or try a keyword search, such as Headers and Edge Type Connectors
