SFS4-L-DC12V-D - Panasonic

Description: Slim type Safety relay compliant with Safety standards

Download SFS4-L-DC12V-D Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SFS4-L-DC12V-D model

Email notifications will be applied after download.

Send part feedback

Symbol

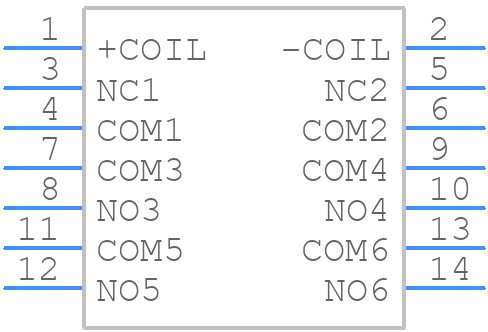

SFS4-L-DC12V-D - Panasonic - PCB symbol

PCB Footprints

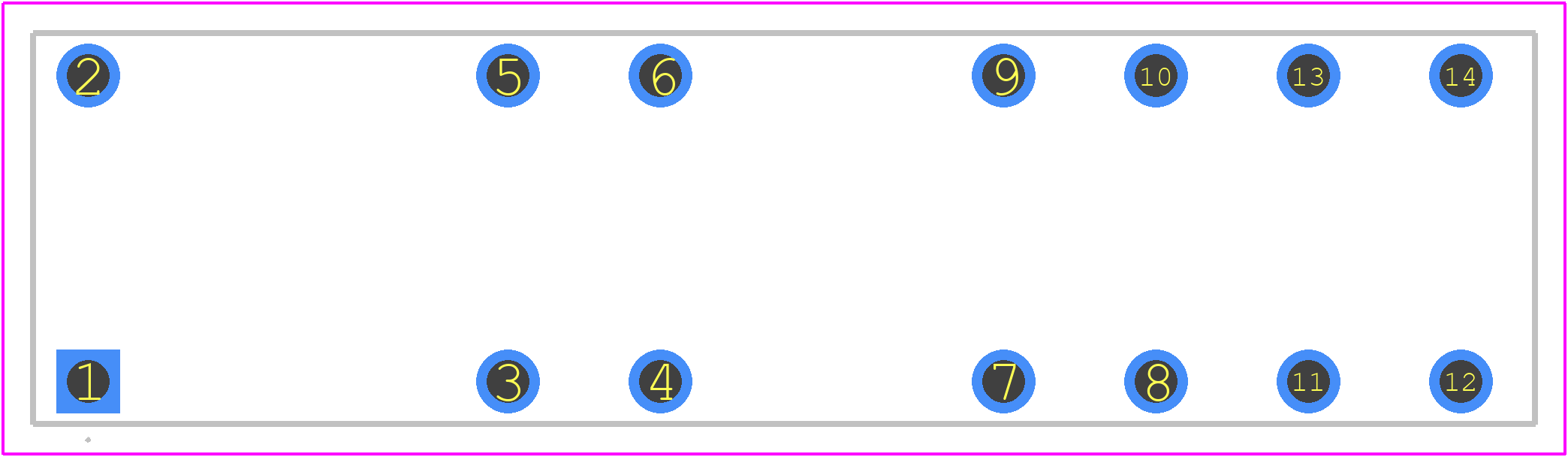

SFS4-L-DC12V-D - Panasonic PCB footprint - Other - Other - AG1S341-1

3D Models

SFS4-L-DC12V-D - Panasonic - 3D model - Other - AG1S341-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for SFS4-L-DC12V-D
Part Number SFS4-L-DC12V-D
Manufacturer Panasonic
Pin Count 14
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - AG1S341-1
Released Date Jan 21, 2026
Last Modified Date Jan 21, 2026 3:14 PM UTC
Pinout / Pin List Click Here (Member Only)

SFS4-L-DC12V-D Details

Manufacturer Part Number:
SFS4-L-DC12V-D
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
Factory Lead Time:
19 Weeks
Manufacturer:
Panasonic Electronic Components

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

SFS4-L-DC12V-D Overview

Use the download button to access the SFS4-L-DC12V-D schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SFS4-, or try a keyword search, such as Special Relays
