Panasonic recommends a PCB layout with a large ground plane and a separate power plane for the relay coil to minimize electromagnetic interference. Additionally, keep the relay away from high-frequency components and ensure a minimum of 1.5 mm clearance around the relay for proper heat dissipation.
To ensure reliable operation in high-temperature environments, ensure that the relay is operated within its specified temperature range (-40°C to 85°C). Also, consider derating the relay's current capacity according to the temperature derating curve provided in the datasheet. Finally, ensure good airflow around the relay to prevent overheating.
The recommended switching frequency for SFS4-L-DC24V is up to 20 Hz. However, it's essential to consider the relay's mechanical endurance and the application's specific requirements when determining the switching frequency. Excessive switching frequency can lead to reduced relay lifespan.
To handle inrush current when switching on the load, consider adding a soft-start circuit or an NTC thermistor in series with the load to limit the inrush current. Additionally, ensure that the relay is rated for the maximum inrush current of the load.
When using SFS4-L-DC24V in a safety-critical application, ensure that the relay is used within its specified ratings and follows the safety guidelines outlined in the datasheet. Additionally, consider implementing redundant relay circuits, fault detection, and fail-safe mechanisms to ensure reliable operation in case of relay failure.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SFS4-L-DC24V Overview

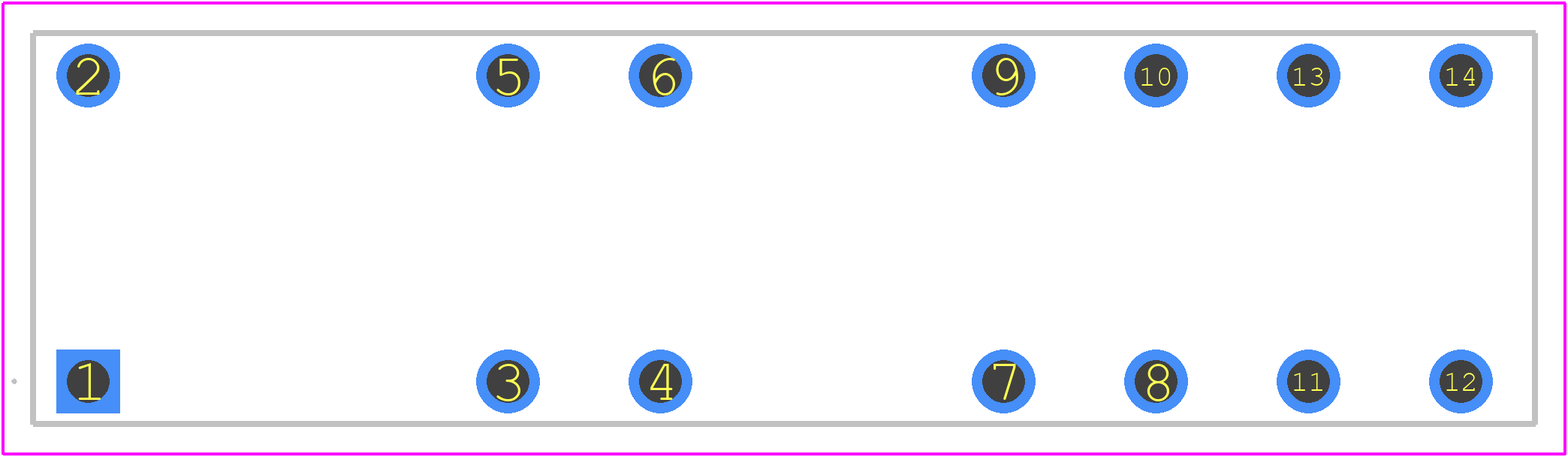

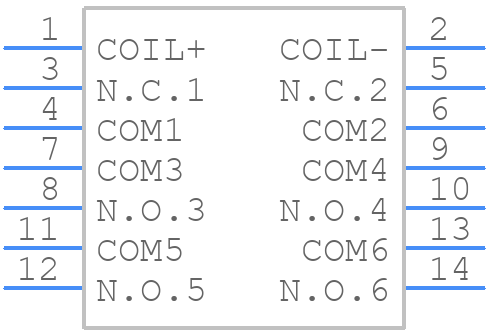

Use the download button to access the SFS4-L-DC24V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SFS4-,
or try a keyword search, such as Special Relays
