Panasonic recommends a PCB layout with a large ground plane, short and wide traces for the input and output, and a decoupling capacitor (e.g., 10uF) between the input and ground to reduce noise and ensure stable operation.
To ensure reliability in high-temperature applications, follow Panasonic's recommended derating guidelines, use a heat sink if necessary, and ensure good airflow around the device. Additionally, consider using a thermally conductive interface material between the device and heat sink.
Yes, SFS6-DC12V can be used in switching power supply designs, but it's essential to ensure that the input voltage is within the recommended range and that the device is properly bypassed with capacitors to reduce noise and ripple.
The maximum allowable voltage for the input of SFS6-DC12V is 15V, but it's recommended to operate within the recommended input voltage range of 10.5V to 13.5V for optimal performance and reliability.
To troubleshoot issues with SFS6-DC12V, check the input voltage, output load, and PCB layout for any errors or inconsistencies. Verify that the device is properly soldered and that there are no signs of physical damage. Consult Panasonic's application notes and technical support resources for further guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SFS6-DC12V Overview

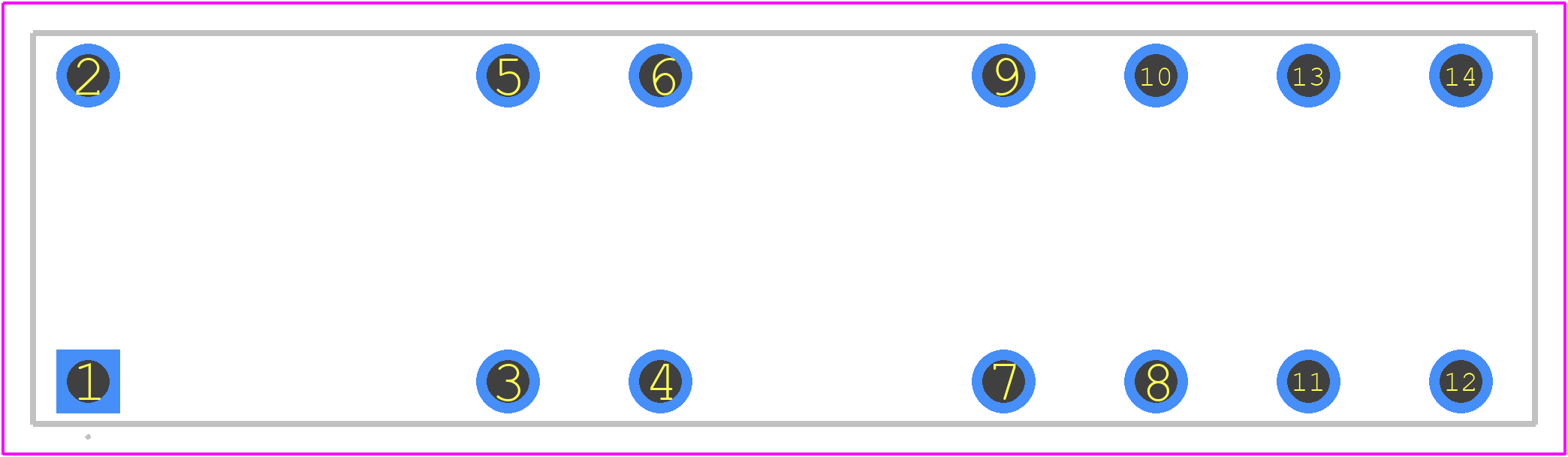

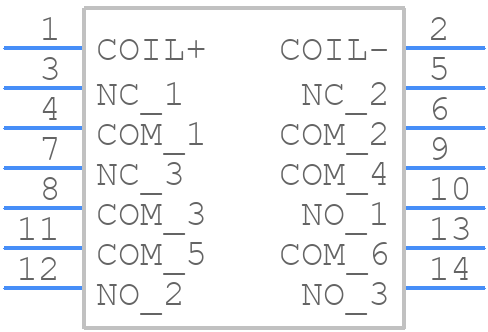

Use the download button to access the SFS6-DC12V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SFS6-,
or try a keyword search, such as Special Relays
