A good PCB layout for SFY2-DC12V involves keeping the input and output capacitors close to the module, using a solid ground plane, and minimizing the length of the input and output traces to reduce EMI.
To ensure reliability in high-temperature applications, ensure that the module is operated within its specified temperature range, provide adequate airflow, and consider using a heat sink or thermal interface material to reduce thermal resistance.
Exceeding the maximum input voltage rating of SFY2-DC12V can cause permanent damage to the module, including overheating, electrical overstress, and reduced lifespan. It is essential to ensure that the input voltage remains within the specified range.
Yes, SFY2-DC12V can be used in a redundant or parallel configuration to achieve higher power outputs. However, it is essential to ensure that the modules are properly synchronized and that the output voltages are matched to prevent uneven current sharing.
SFY2-DC12V has built-in EMI filtering, but additional filtering may be required depending on the specific application and regulatory requirements. It is recommended to consult the datasheet and relevant regulatory standards for guidance on EMI filtering.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SFY2-DC12V Overview

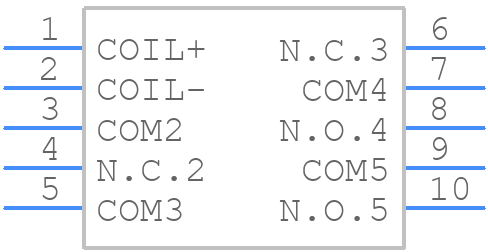

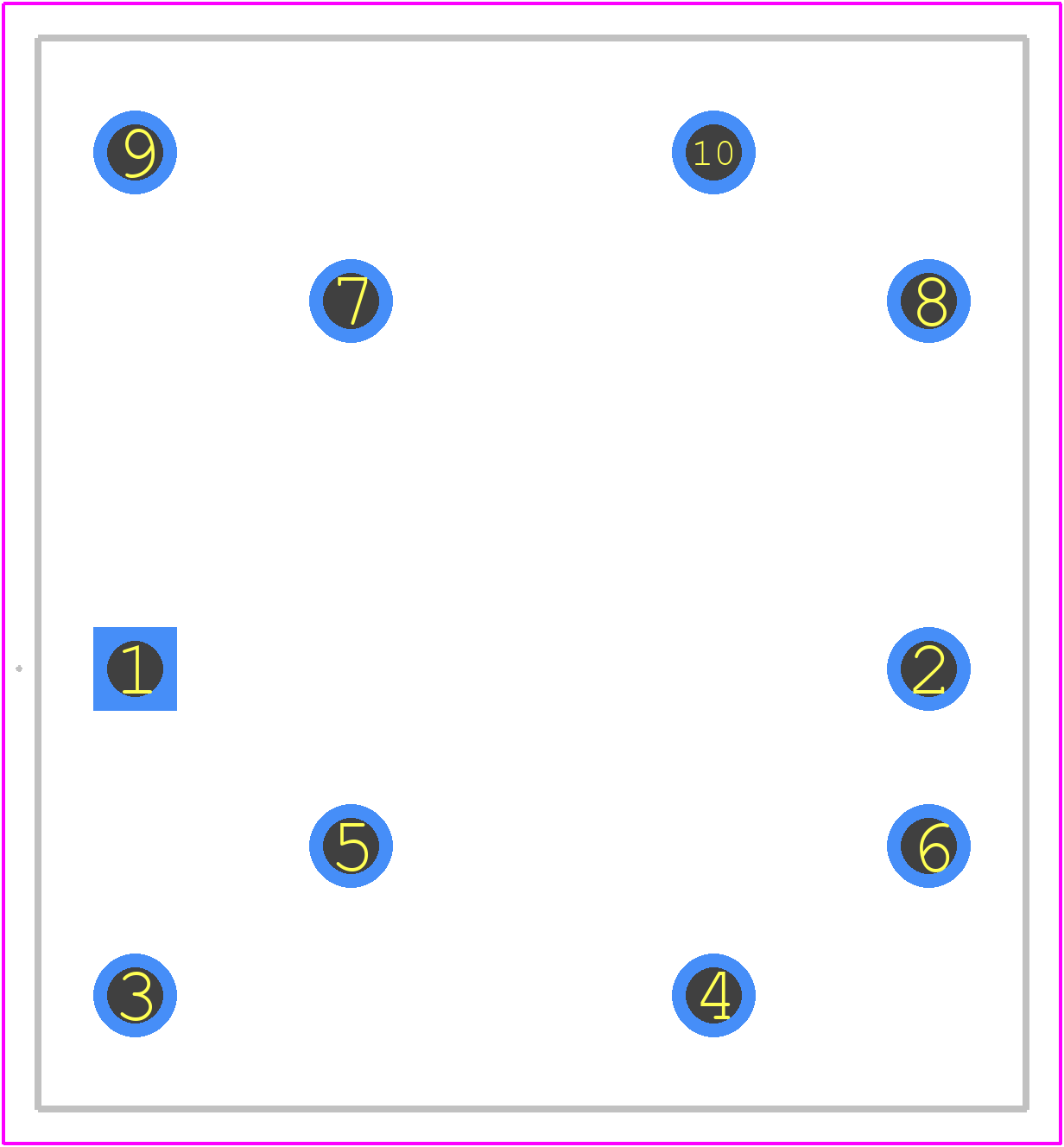

Use the download button to access the SFY2-DC12V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SFY2-,
or try a keyword search, such as Special Relays
